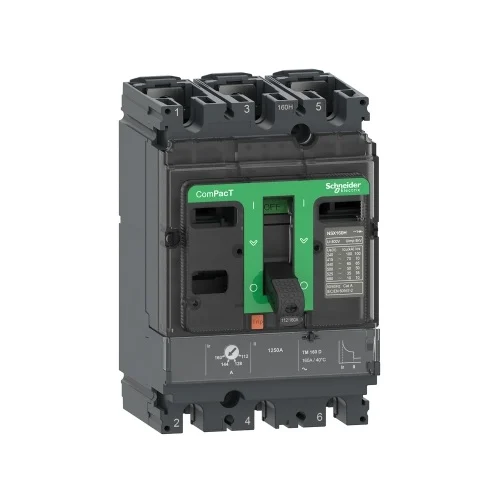

Name: Schneider ComPacT C10F3TM016 Circuit Breaker - INOSAKI
SKU: Schneider-C10F3TM016
Price: 131.84 USD
Availability: InStock

Technical Overview

High-performance 3P MCCB (16A, 36kA at 415VAC) featuring a TM-D thermal-magnetic trip unit for thermal overload and short-circuit protection.

Key Features

Thermal-magnetic (TM-D) trip unit technology offering robust overload and short-circuit protection.
3-pole fixed configuration with a protected poles description of 3D.
Adjustable thermal protection threshold from 0.7 to 1.0 times the rated current (11.2 A to 16 A).
Fixed magnetic protection threshold set at 190 A.
Substantial short-circuit breaking capacity of 36 kA at 380/415 V AC and up to 85 kA at 220/240 V AC.
Positive contact indication local signaling for heightened operational safety.
Highly durable design with mechanical and electrical life up to 50,000 cycles.
IP40 ingress protection rating conforming to IEC 60529 on the front face.

Technical Specification Matrix

Parameter	Value
Rated Current	16 A at 40 °C
Rated Operational Voltage	690 V AC 50/60 Hz
Breaking Capacity	36 kA Icu at 380/415 V AC 50/60 Hz
Number of Poles	3P
Protected Poles	3D
Trip Unit Name	TM-D
Trip Unit Technology	Thermal-magnetic
Control Type	Toggle
Mounting Mode	Fixed
Rated Insulation Voltage	800 V AC 50/60 Hz
Rated Impulse Withstand Voltage	8 kV
IP Rating	IP40 conforming to IEC 60529 (front face)
IK Rating	IK07 conforming to IEC 62262
Operating Temperature	-25 to 70 °C
Mechanical Durability	50,000 cycles
Physical Weight (kg)	2.05
Dimensions L x W x H (cm)	8.6 x 10.5 x 16.1

Industrial Applications

1. Low-Power Motor Feeder Protection in Industrial Water Treatment Plants

In water treatment facilities, low-power dosing pumps and agitators operating on 415V AC require dedicated branch protection. The 16A TM-D trip unit of this circuit breaker protects these small motor loads from overcurrent damage while offering an adjustable thermal threshold (0.7 to 1x In) to match exact pump operating currents.

Problem Solved

Prevents motor burnout and localized cable overheating under minor overload conditions, avoiding system shutdown.

415V AC DistributionBranch Circuit ProtectionTM-D Trip UnitAdjustable Thermal Overload16A Motor Feeder

2. Main Power Infeed Protection for Marine HVAC Control Panels

Marine control enclosures must withstand severe vibrations and high prospective short-circuit currents while operating in compact spaces. This MCCB's compact dimensions (105x161x86 mm) allow installation in tightly-spaced panels, while its marine certification and robust 36kA breaking capacity at 415V protect the downstream HVAC components from sudden electrical faults.

Problem Solved

Solves space constraint issues inside certified marine control panels while supplying highly reliable fault clearance under extreme mechanical stress.

Marine SpecificationsCompact Panel Footprint36kA Breaking CapacityBackplate MountingThermal-Magnetic Protection

3. Industrial Automation Control Panel Distribution Branching

Automated assembly line control panels route main power into multiple sub-circuits. This 3P fixed breaker serves as a highly reliable sub-distribution switch, protecting individual PLC racks, HMI supplies, and low-current line heaters. The 190A fixed magnetic protection handles inrush current without nuisance tripping, while ensuring rapid isolation of short circuits.

Problem Solved

Eliminates false trips during high inductive inrush startups while offering instantaneous protection against dead short circuits in automated manufacturing cells.

Distribution ProtectionPositive Contact IndicationFixed Magnetic Protection16A Branch CircuitIP40 Front Enclosure
