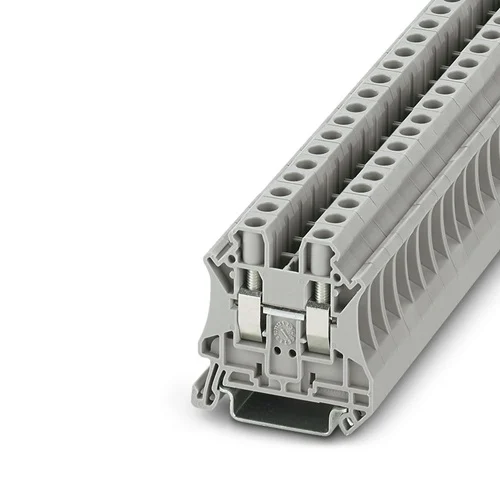

Name: Phoenix Contact UT 6 Feed-Through Terminal Block - INOSAKI
SKU: Phoenix-3044131
Price: 1.24 USD
Availability: InStock

Technical Overview

1000V, 41A feed-through terminal block with 0.2-10mm² (24-8 AWG) screw connections. Features vibration-resistant Reakdyn principle for stable wiring.

Key Features

Globally recognized, internationally proven screw connection.
Large wiring space enables connection of solid and stranded conductors without ferrules.
Compact design for user-friendly wiring in small spaces.
Multi-conductor connection offers maximum flexibility and wiring density.
Cable entry funnel allows use of conductors with ferrules and plastic collars within the nominal cross section.
Tested for railway applications.
High conductivity with metals made of high-strength copper alloys.
Full flexibility due to standardized CLIPLINE complete bridging, marking, and testing accessories.

Technical Specification Matrix

Parameter	Value
Product Type	Feed-through terminal block
Nominal Voltage	1000 V
Nominal Current	41 A
Maximum Load Current (with 10 mm² conductor)	57 A
Rated Cross Section	6 mm²
Conductor Cross-Section (Rigid)	0.2 mm² - 10 mm²
Conductor Cross-Section (Flexible)	0.2 mm² - 10 mm²
AWG Range	24 - 8 AWG
Number of Connections	2
Connection Method	Screw connection
Mounting Type	DIN rail (NS 35/7,5, NS 35/15)
Color	Gray
Flammability Rating (UL 94)	V-0
Overvoltage Category	III
Degree of Pollution	3
Rated Surge Voltage	8 kV
Tightening Torque	1.5 - 1.8 Nm
Stripping Length	10 mm
Approvals	ATEX, CB, CCC, CSA, cUL Recognized, cULus Recognized, DNV GL, EAC, EAC Ex, IECEE CB Scheme, IECEx, LR, PRS, RS, UL Recognized, VDE Gutachten mit Fertigungsüberwachung
Physical Weight (kg)	0.01
Dimensions L x W x H (cm)	4.77 x 0.82 x 4.69

Industrial Applications

1. High-Voltage Industrial Control Panel Wiring

This terminal block is ideal for wiring control panels of heavy industrial machinery, such as large presses, material handling systems, or HVAC units, where robust and secure connections for power and control circuits are critical.

Problem Solved

Ensures reliable and vibration-resistant power distribution and signal integrity in demanding industrial environments operating at up to 1000V and 41A. The screw connection with Reakdyn principle prevents loosening due to machine vibration, reducing downtime and maintenance.

1000V41A24-8 AWGScrew ConnectionDIN RailVibration-resistantControl PanelIndustrial Automation

2. Railway Signaling and Power Distribution Systems

Given its tested suitability for railway applications, this terminal block can be effectively used in railway signaling cabinets, trackside control boxes, or power distribution units within train stations.

Problem Solved

Provides a secure and compliant electrical connection solution for critical railway infrastructure. Its 1000V rating and robust design handle the electrical demands, while the vibration resistance is crucial for systems exposed to train movement and environmental stresses.

1000V41ARailway IndustryDIN RailVibration ResistanceSignalingPower DistributionEN 50274

3. Medium-Voltage Plant Equipment Interconnections

Suitable for interconnection points within plant engineering, particularly for medium-voltage applications where space efficiency and secure wiring are paramount, such as in motor control centers, process instrumentation, or lighting distribution.

Problem Solved

Offers reliable termination for circuits requiring up to 1000V and 41A within a compact footprint. Its multi-conductor capability and ease of wiring accommodate complex layouts in plant setups, minimizing installation time and maximizing wiring density.

1000V41A0.2-10mm²Compact DesignMulti-conductorPlant EngineeringMotor ControlProcess Instrumentation
