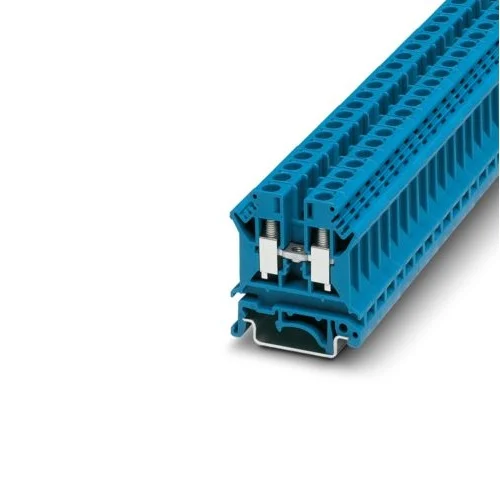

Name: Phoenix Contact UK 6 N BU Feed-Through Terminal Block - INOSAKI
SKU: Phoenix-3004977
Price: 6.47 USD
Availability: InStock

Technical Overview

DIN rail feed-through terminal block, 800V/41A, for 0.2-10mm² conductors, blue, UL 94 V-0 polyamide, -60°C to 110°C operation.

Key Features

Screw connection method for reliable and secure wiring.
Accommodates rigid conductors from 0.2 mm² to 10 mm² and flexible conductors from 0.2 mm² to 6 mm².
Nominal voltage of 800 V and nominal current of 41 A for diverse applications.
DIN rail mountable on NS 32, NS 35/7.5, and NS 35/15 types for versatile installation.
Blue color (RAL 5015) for easy identification within control cabinets.
Wide operating temperature range from -60 °C to 110 °C.
Constructed from polyamide (PA) with a UL 94 V-0 flammability rating.

Technical Specification Matrix

Parameter	Value
Nominal Voltage	800 V
Nominal Current	41 A
Maximum Load Current (with 10 mm² conductor)	57 A
Connection Method	Screw connection
Number of Connections	2
Number of Levels	1
Rated Cross-section	6 mm²
Conductor Cross-section (rigid)	0.2 mm² - 10 mm²
Conductor Cross-section (flexible)	0.2 mm² - 6 mm²
AWG Range	24 - 8 (converted acc. to IEC)
Mounting Type	DIN rail NS 32, NS 35/7.5, NS 35/15
Color	Blue (RAL 5015)
Insulating Material	Polyamide (PA)
Flammability Rating	UL 94 V-0
Rated Surge Voltage	8 kV
Degree of Pollution	3
Overvoltage Category	III
Operating Temperature Range	-60 °C ... 110 °C
Stripping Length	10 mm
Screw Thread	M4
Tightening Torque	1.5 Nm ... 1.8 Nm
Physical Weight (kg)	0.01
Dimensions L x W x H (cm)	4.7 x 0.82 x 4.25

Industrial Applications

1. Industrial Control Panels in Hazardous Locations

This terminal block is ideal for electrical connections within industrial control panels situated in potentially explosive atmospheres, such as chemical processing plants or oil and gas facilities. Its Ex e approval ensures compliance with increased safety requirements, minimizing ignition risks.

Problem Solved

Safely and reliably connects electrical circuits in hazardous industrial environments, preventing the generation of sparks or excessive heat that could lead to explosions.

Ex e approvalhazardous areaIEC/EN 60079control panelscrew connection800V41Apolyamide

2. High-Density Wiring in Factory Automation Systems

With a compact width and ability to handle various wire cross-sections, this terminal block enables efficient and space-saving wiring in modern factory automation cabinets. It provides secure connections for a multitude of sensors, actuators, and control modules.

Problem Solved

Optimizes space utilization in crowded electrical enclosures by providing compact and reliable electrical connections for complex automation systems, thereby reducing cabinet footprint and simplifying installation.

high-density wiringfactory automationcompact designDIN railscrew connection8.2 mm width0.2-10 mm² wire41A

3. Harsh Environment Power Distribution for Outdoor Equipment

The robust construction and wide operating temperature range (-60 °C to 110 °C) make this terminal block perfectly suited for power distribution in outdoor industrial equipment or systems exposed to extreme temperature fluctuations and harsh weather conditions.

Problem Solved

Ensures stable and durable electrical connections for equipment operating in severe outdoor climates, maintaining electrical integrity and operational reliability despite wide temperature swings.

harsh environmentextreme temperature-60°C to 110°Coutdoor equipmentpower distributionpolyamidemechanical stability800V
