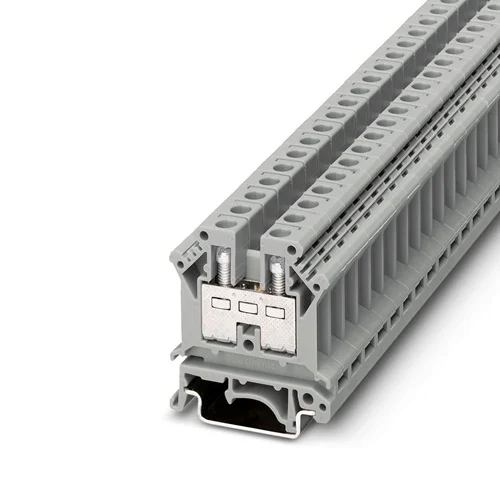

Name: Phoenix Contact UK 10 Feed-Through Terminal Block - INOSAKI
SKU: Phoenix-3005015
Price: 8.71 USD
Availability: InStock

Technical Overview

Reliable DIN rail feed-through terminal block, rated 800V/57A, accommodating 0.5-10mm² wire via screw connection. Operates from -60°C to 110°C. UL 94 V0 rated.

Key Features

Feed-through terminal block design
Robust screw connection technology
Universal snap-on foot for NS 32, NS 35/7.5, NS 35/15 DIN rails
Supports multiple conductor connections (2 connections)
Flexible screw-type bridge system for high current capacity
Wide operating temperature range: -60 °C to 110 °C
Accommodates wire cross-sections from 0.5 mm² to 10 mm² (20-8 AWG)
Rated overvoltage category III, degree of pollution 3
Flammability rating according to UL 94: V0
Insulating material group I

Technical Specification Matrix

Parameter	Value
Nominal Voltage	800 V (IEC)
Nominal Current	57 A (IEC, with 10 mm² conductor)
Number of Connections	2
Connection Method	Screw connection
Wire Cross Section Range	0.5 mm² - 10 mm² (IEC); 20 AWG - 8 AWG (UL)
Mounting Type	DIN rail (NS 32, NS 35/7.5, NS 35/15)
Color	Gray (RAL 7042)
Flammability Rating (UL 94)	V0
Insulating Material Group	I
Overvoltage Category	III
Degree of Pollution	3
Rated Surge Voltage	8 kV
Operating Temperature Range	-60 °C to 110 °C
Physical Weight (kg)	0.01
Dimensions L x W x H (cm)	4.25 x 0.82 x 4.25

Industrial Applications

1. Industrial Control Panel Wiring

This terminal block is ideal for distributing power within industrial control panels due to its high nominal voltage of 800V and current capacity of 57A. The screw connection method ensures a reliable and vibration-resistant contact, crucial for continuous operation in demanding industrial environments.

Problem Solved

Provides secure and organized power distribution in industrial control panels, effectively handling significant electrical loads and maintaining connection integrity against vibrations.

Industrial ControlPower DistributionDIN RailScrew ConnectionHigh CurrentHigh VoltageVibration Resistance

2. HVAC System Interconnection

The Phoenix Contact UK 10's wide operating temperature range of -60 °C to 110 °C makes it perfectly suited for HVAC systems exposed to extreme temperature fluctuations. Its ability to accommodate wire cross-sections from 0.5 mm² to 10 mm² allows for versatile power and control wiring in heating, ventilation, and air conditioning units.

Problem Solved

Ensures reliable and robust electrical connections for power and control signals in HVAC systems that experience a broad range of ambient temperatures.

HVACTemperature ExtremesPower WiringControl WiringScrew TerminalsWide Temperature Range

3. Machine Tool Power Connectivity

For machine tools, the terminal block's 57A current rating and strong screw connection provide essential current handling and vibration immunity for motors, heaters, and control circuits. Its compact width of 8.2 mm also enables high-density wiring configurations required in complex machinery.

Problem Solved

Delivers secure, high-current electrical connections for power and control in vibrating machine tool environments, contributing to operational stability and safety.

Machine ToolsHigh CurrentVibration ImmunityMotor ControlPower ConnectivityCompact DesignScrew Connection
