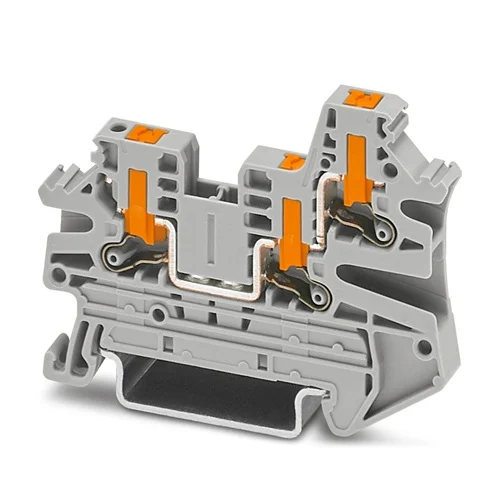

Name: Phoenix Contact PTV 2,5-TWIN Feed-Through Terminal Block - INOSAKI
SKU: Phoenix-1078966
Price: 6.22 USD
Availability: InStock

Technical Overview

800V, 24A DIN rail feed-through terminal with lateral push-in connection. Supports 0.14-4mm² conductors. Operates -60°C to 110°C. Compact design.

Key Features

Lateral conductor entry for clear wiring without bending radii.
Push-in connection technology allows direct, tool-free conductor connection.
Supports solid and flexible conductors from 0.14 mm² to 4 mm² (26-12 AWG).
Rated for 800 V nominal voltage and 24 A nominal current.
DIN rail mountable (NS 35/7,5, NS 35/15).
Compact design enables wiring in confined spaces.
Provides an additional test pick-off in the double function shaft.
Operates in a wide temperature range from -60 °C to 110 °C.

Technical Specification Matrix

Parameter	Value
Product Type	Multi-conductor terminal block
Product Family	PTV
Nominal Voltage	800 V
Nominal Current	24 A
Rated Surge Voltage	8 kV
Number of Connections	3
Connection Method	Push-in connection
Rated Cross Section	2.5 mm²
Conductor Cross-Section Rigid (min-max)	0.14 mm² - 4 mm² (26 AWG - 12 AWG)
Conductor Cross-Section Flexible (min-max)	0.14 mm² - 4 mm² (26 AWG - 12 AWG)
Stripping Length	8 mm - 10 mm
Mounting Type	DIN rail (NS 35/7,5, NS 35/15)
Color	gray (RAL 7042)
Operating Temperature Range	-60 °C to 110 °C
Degree of Pollution	3
Overvoltage Category	III
Flammability Rating (UL94)	V0
Physical Weight (kg)	0.01
Dimensions L x W x H (cm)	6 x 0.52 x 4.57
