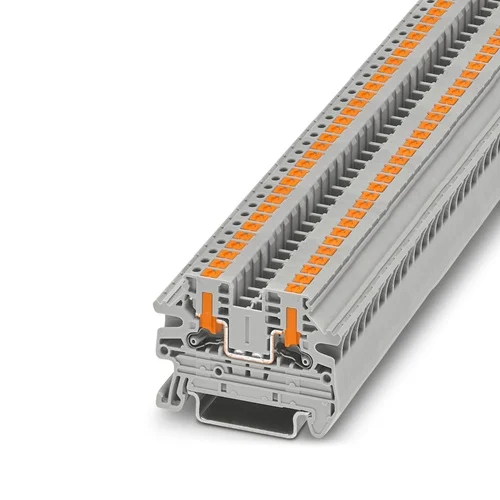

Name: Phoenix Contact PTV 2,5 Feed-through Terminal Block - INOSAKI
SKU: Phoenix-1078960
Price: 6.22 USD
Availability: InStock

Technical Overview

DIN rail mount, gray feed-through terminal block with Push-in connection for 0.14-4mm² conductors, 800V/24A, operating from -60°C to +85°C.

Key Features

Clear wiring facilitated by lateral conductor entry.
Compact design allows for efficient wiring in confined spaces.
Fully compatible with CLIPLINE complete system accessories for comprehensive solutions.
Includes an additional test pick-off point within the double function shaft.
Guaranteed finger and back-of-hand protection for enhanced safety.
Optimized for both manual and automated wiring processes.

Technical Specification Matrix

Parameter	Value
Product Type	Feed-through terminal block
Nominal Voltage (IEC)	800 V
Nominal Current (IEC)	24 A (at 2.5 mm²)
Maximum Load Current	28 A (with 4 mm² conductor)
Connection Method	Push-In
Color	Gray (RAL 7042)
Housing Material	Polyamide (PA)
Flammability Rating	UL 94 V-0
Mounting Type	DIN Rail (NS 35/7.5, NS 35/15)
Wire Gauge Range (AWG)	26 - 12 AWG
Conductor Cross Section Range (mm²)	0.14 mm² - 4 mm²
Nominal Cross Section	2.5 mm²
Number of Connections	2
Number of Levels	1
Operating Temperature Range	-60 °C to +85 °C
Rated Surge Voltage	8 kV
Degree of Pollution	3
Overvoltage Category	III
Stripping Length	8 mm ... 10 mm
Physical Weight (kg)	0.01
Dimensions L x W x H (cm)	5.08 x 0.52 x 3.53

Industrial Applications

1. Industrial Control Panel Wiring

This terminal block is ideal for wiring control circuits within industrial control panels, offering efficient and reliable connections for power and signal distribution.

Problem Solved

Simplifies and speeds up the wiring process in dense control cabinets, reducing installation time and ensuring reliable, vibration-resistant connections for complex automation systems. Its compact design helps maximize panel space.

Control cabinetDIN rail mountingPower distributionSignal wiringPush-in connection800V24ACompact design

2. Railway Signal and Control Systems

Suitable for robust electrical connections in railway infrastructure, supporting signal, control, and auxiliary power systems in harsh environmental conditions.

Problem Solved

Provides reliable, maintenance-free, and vibration-resistant electrical terminations essential for critical railway applications, capable of enduring constant movement, shock, and extreme temperatures from -60°C to +85°C.

Railway industryVibration resistanceExtreme temperature operationAuxiliary powerSignal integrityDIN rail

3. Process Industry Sensor/Actuator Interfacing

Effectively connects various instrumentation, sensors, and actuators in process and plant engineering environments.

Problem Solved

Offers a secure and space-efficient solution for interfacing a wide range of field devices, from low-power sensors (0.14 mm² wire) to actuators (up to 4 mm² wire), simplifying wiring, ensuring high connection density in junction boxes, and facilitating quick maintenance due to Push-in technology.

Process industryPlant engineeringSensor wiringActuator controlInstrumentationCompact junction boxesPush-in terminationSmall gauge wire
