Name: Phoenix Contact PTFIX 18X4 GY Distribution Block - INOSAKI
SKU: Phoenix-3273834
Price: 10.20 USD
Availability: InStock

Technical Overview

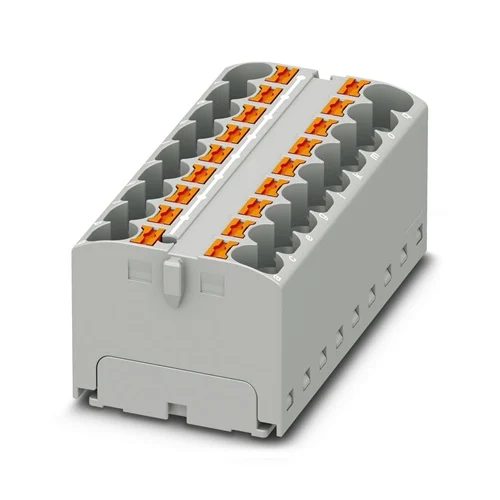

Gray distribution block with 18 Push-in connections for 0.2-6mm² conductors, 450V/32A, operating from -60°C to 110°C.

Key Features

Push-in connection technology for fast, tool-free wiring.
18 connections for efficient power distribution.
Compact design saves up to 50% space on the DIN rail through transverse mounting.
Supports conductor cross-sections from 0.2 mm² to 6 mm² (AWG 24-10).
Wide operating temperature range from -60 °C to 110 °C.
Multiple mounting options: DIN rail adapter, direct flange mounting, or free-hanging.
UL 94 V0 flammability rating for enhanced safety.
Gray housing (RAL 7042) for clear identification.
Rated surge voltage of 6 kV.

Technical Specification Matrix

Parameter	Value
Product Type	Distribution block
Nominal Voltage (IEC)	450 V
Nominal Current (IEC)	32 A
Number of Connections	18
Connection Method	Push-in connection
Conductor Cross Section Range	0.2 mm² - 6 mm² (AWG 24-10)
Mounting Type	DIN rail adapter, Direct mounting with flange, Free-hanging
Color	gray (RAL 7042)
Rated Surge Voltage	6 kV
Operating Temperature Range	-60 °C to 110 °C
Flammability Rating (UL 94)	V0
Insulating Material	PA (Polyamide)
Degree of Pollution	3
Overvoltage Category	III
Insulating Material Group	I
Stripping Length	10 - 12 mm
IP Rating	IP20
Physical Weight (kg)	0.04
Dimensions L x W x H (cm)	2.17 x 5.54 x 2.86

Industrial Applications

1. Industrial Control Panel Wiring for Compact Machines

This distribution block streamlines power distribution within compact industrial control panels for machines like packaging equipment or small robotics.

Problem Solved

The Push-in connection technology (tool-free, 0.2-6mm² wire range) drastically reduces wiring time and complexity, crucial for high-volume manufacturing. Its compact dimensions (55.4mm W, 28.6mm H, 21.7mm D) and DIN rail mounting maximize space utilization in crowded enclosures. The 18 connections provide ample distribution points for various machine loads.

Compact designPush-in technologyDIN rail mountingHigh density wiringMachine controlPackaging equipment

2. HVAC System Power Distribution in Commercial Buildings

Ideal for distributing power to multiple components (fans, sensors, actuators) within HVAC control units in commercial and industrial buildings.

Problem Solved

The 450V nominal voltage and 32A nominal current rating are suitable for typical HVAC power requirements. The -60°C to 110°C operating temperature range ensures reliable operation in diverse environmental conditions. The IP20 rating provides adequate protection against solid foreign objects for indoor applications. The 18 connections allow organized and efficient wiring of numerous circuits.

HVAC controlBuilding automationPower distributionWide operating temperatureIP20Commercial infrastructure

3. Distributed I/O Module Power Supply in Factory Automation

Used to provide reliable power taps for multiple distributed I/O modules on a production line, where quick installation and robust connections are essential.

Problem Solved

In factory automation, quick installation and maintenance are paramount. The Push-in technology ensures fast, secure connections, minimizing downtime during installation or troubleshooting. The 6kV rated surge voltage offers protection against transient overvoltages common in industrial environments, enhancing system reliability. Its robust construction with UL 94 V0 flammability rating provides safety and durability in demanding factory settings.

Factory automationDistributed I/OProduction lineSurge protectionQuick connectionUL 94 V0Industrial safety
