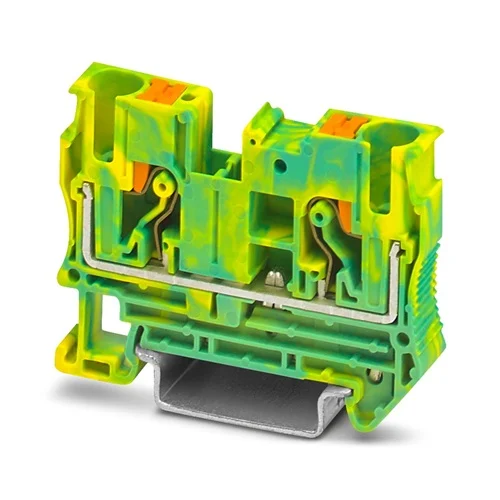

Name: Phoenix Contact PT 6-PE Protective Conductor Terminal Block - INOSAKI
SKU: Phoenix-3211822
Price: 8.96 USD
Availability: InStock

Technical Overview

Push-in protective conductor terminal for 0.5-10mm² conductors. Features 8kV surge protection, UL 94 V0, ATEX/IECEx certified, -60°C to 110°C operating range.

Key Features

Tool-free push-in direct-connection technology reduces installation time.
Vibration-resistant and maintenance-free conductor connection for long service life.
Full compatibility with CLIPLINE complete range of bridging, marking, and testing accessories.
Wide operating temperature range of -60°C to 110°C.
UL 94 V0 flammability rating for enhanced safety.
ATEX/IECEx certified for protective conductor grounding in potentially explosive atmospheres.
Tested for railway applications (DIN EN 50155 vibration and shock tests).
Compact design and front connection enable wiring in confined spaces.

Technical Specification Matrix

Parameter	Value
Product Type	Protective conductor terminal block
Nominal Cross Section	6 mm²
Conductor Cross Section (rigid/flexible)	0.5 mm² - 10 mm²
Conductor Cross Section AWG	20 - 8 AWG
Connection Method	Push-in connection
Number of Connections	2
Rated Surge Voltage	8 kV
Overvoltage Category	III
Degree of Pollution	3
Maximum Power Dissipation	1.31 W
Mounting Type	DIN rail NS 35/7.5, NS 35/15
Color	Green-yellow
Insulating Material	PA
Flammability Rating	UL 94 V0
Operating Temperature	-60°C to 110°C
ATEX/IECEx Identification	II 2 GD Ex eb IIC Gb
Stripping Length	10 mm - 12 mm
Physical Weight (kg)	0.02
Dimensions L x W x H (cm)	4.22 x 0.82 x 5.77

Industrial Applications

1. Railway Rolling Stock Grounding

The Phoenix Contact PT 6-PE is ideal for grounding electrical systems in railway rolling stock due to its robust design and compliance with railway standards. Its wide operating temperature range and vibration resistance ensure stable and safe operation in demanding environments.

Problem Solved

Ensures reliable and safe grounding of electrical systems in railway rolling stock, maintaining operational integrity despite harsh vibrations, temperature fluctuations, and complying with stringent railway standards.

RailwayDIN EN 50155Vibration-resistantGrounding-60°C to 110°CPush-in connection

2. Hazardous Area Industrial Control Panels

With its ATEX/IECEx certification, this protective conductor terminal block is suitable for establishing safe earthing connections in industrial control panels located in potentially explosive atmospheres, preventing ignition hazards.

Problem Solved

Provides a certified and safe grounding solution for electrical enclosures and equipment in industrial areas with flammable gases or dust, preventing ignition sources and ensuring personnel safety through proper earthing.

ATEXIECExHazardous areaExplosive atmospheresGroundingProtective conductorUL 94 V0

3. High-Reliability Machine Building Electrical Systems

The tool-free push-in connection and maintenance-free design of the PT 6-PE make it excellent for grounding within machine building electrical systems, where quick installation and long-term reliability against operational vibrations are critical.

Problem Solved

Offers a quick-to-install, reliable, and maintenance-free grounding point within complex machine control panels, ensuring continuous operation and safety by providing a stable earth connection that resists operational vibrations and reduces wiring errors.

Machine buildingPush-in connectionVibration-resistantMaintenance-free0.5-10mm² conductorCompact design
