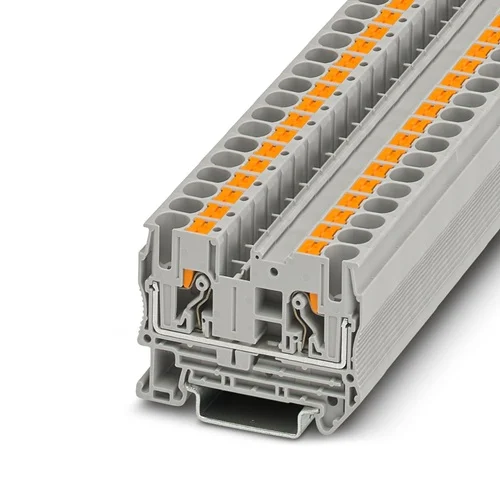

Name: Phoenix Contact PT 6 Feed-Through Terminal Block Gray - INOSAKI
SKU: Phoenix-3211813
Price: 6.72 USD
Availability: InStock

Technical Overview

Gray 1000V, 41A feed-through terminal block with Push-in connection for 0.5-10mm² wires. Features DIN rail mounting and -60°C to 85°C operating range.

Key Features

Tested for railway applications.
Features additional test connection points in the double function shaft.
Compact design with front connection facilitates wiring in confined spaces.
Compatible with the CLIPLINE complete system accessories.
Housing material made from durable Polyamide (PA).
Mounts on NS 35/7.5 and NS 35/15 DIN rails.
Supports wire sizes from 0.5 mm² to 10 mm² (20-8 AWG).

Technical Specification Matrix

Parameter	Value
Nominal Voltage	1000 V
Nominal Current	41 A
Rated Surge Voltage	8 kV
Connection Method	Push-in Connection
Rated Cross Section	6 mm²
Wire Cross Section Range	0.5 mm² - 10 mm² (AWG 20-8)
Number of Connections per Level	2
Number of Positions	1
Number of Levels	1
Mounting Type	DIN Rail (NS 35/7.5, NS 35/15)
Color	Gray
Insulating Material	PA (Polyamide)
Minimum Operating Temperature	-60°C
Maximum Operating Temperature	85°C
Physical Weight (kg)	0.02
Dimensions L x W x H (cm)	5.77 x 0.82 x 4.22

Industrial Applications

1. High-Voltage Industrial Control Panels

This terminal block is perfectly suited for dense wiring in industrial control panels where high voltages (up to 1000V) and currents (up to 41A) are routed. Its compact 8.2mm width and front-entry Push-in connection allow for efficient use of limited space, while ensuring reliable electrical connections for control signals and power distribution.

Problem Solved

Provides a safe, space-saving, and quick-to-install connection solution for high-voltage and high-current wiring within crowded industrial control cabinets, minimizing installation time and complexity.

1000V41A8.2mm WidthPush-in ConnectionDIN Rail MountingControl Panel Wiring

2. Railway Signaling and Power Distribution

Given its 'tested for railway applications' rating and robust specifications, this terminal block excels in railway signaling and power distribution systems. It can reliably handle 1000V and 41A, connecting sensors, actuators, and critical power lines under harsh conditions, including vibrations and extreme temperatures ranging from -60°C to 85°C, ensuring consistent operational integrity.

Problem Solved

Offers a durable and compliant solution for electrical connections in railway environments, capable of withstanding operational stresses and environmental fluctuations while maintaining high electrical performance and safety.

Railway Applications1000V41ADIN Rail Mounting-60°C to 85°CVibration Resistance

3. Renewable Energy System Junction Boxes

In renewable energy installations, particularly solar farms, this terminal block is ideal for connecting high-voltage DC strings from solar panels within combiner or inverter junction boxes. Its 1000V nominal voltage and 41A current rating, combined with a 0.5-10mm² wire range and quick Push-in connection, ensure efficient and secure power aggregation in often exposed and demanding outdoor environments.

Problem Solved

Facilitates safe, high-current, and high-voltage connections for solar panel strings in compact junction boxes, enabling rapid deployment and reliable performance in diverse environmental conditions.

Solar PV1000V DC41A0.5-10mm² WirePush-in ConnectionJunction Box
