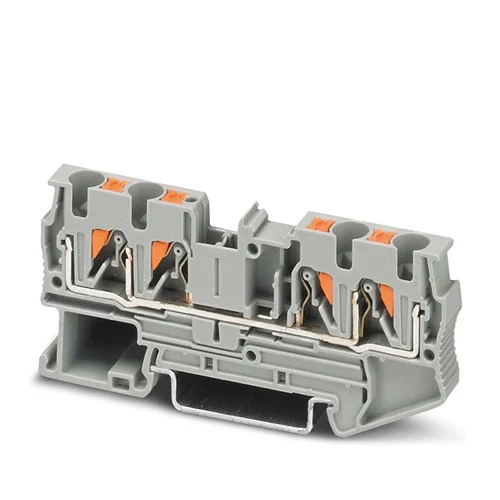

Name: Phoenix Contact PT 4-QUATTRO Feed-Through Terminal Block - INOSAKI
SKU: Phoenix-3211797
Price: 6.72 USD
Availability: InStock

Technical Overview

800V, 32A DIN rail feed-through terminal block with Push-in connections for 0.2-6mm² wire. Operates from -60°C to 110°C.

Key Features

Push-in connection technology for easy and direct conductor connection.
Compatible with the CLIPLINE complete system for standardized bridging, marking, and testing.
Compact design and front connection enable wiring in confined spaces.
Tested for railway applications.
Tool-free wiring of solid and stranded conductors with ferrules from 0.34mm².
Low power dissipation of 1.02W.
Suitable for use in Ex zones (potentially explosive atmospheres).
Wide operating temperature range from -60 °C to 110 °C.
Guaranteed finger and back-of-hand protection.
Four connections for efficient wiring.

Technical Specification Matrix

Parameter	Value
Nominal Voltage	800 V
Nominal Current	32 A
Maximum Load Current	38 A (with 6 mm² rigid conductor)
Conductor Cross Section (min)	0.2 mm² (24 AWG)
Conductor Cross Section (max)	6 mm² (10 AWG)
Number of Positions	4
Connection Method	Push-in connection
Mounting Type	DIN rail (NS 35/7,5, NS 35/15)
Operating Temperature Range	-60 °C to 110 °C
Rated Impulse Voltage	8 kV
Pollution Degree	3
Overvoltage Category	III
Insulating Material Group	I
Power Dissipation	1.02 W
Color	Gray
Physical Weight (kg)	0.01
Dimensions L x W x H (cm)	7.7 x 0.62 x 3.53

Industrial Applications

1. High-Voltage Industrial Control Panels

This terminal block is ideal for distributing power in industrial control panels, connecting components operating at up to 800V and 32A. Its compact design facilitates efficient wiring in space-constrained cabinets, ensuring robust and reliable electrical connections for motors and heavy-duty equipment.

Problem Solved

Provides secure, high-voltage power distribution in compact industrial control panels, addressing space limitations and high electrical load requirements.

800V32A6mm² conductorDIN rail mountCompact design

2. Railway Signaling and Traction Power Systems

With its 'tested for railway applications' certification and broad operating temperature range of -60°C to 110°C, this terminal block is perfectly suited for harsh railway environments. It can reliably handle signaling circuits and auxiliary power distribution in trains or trackside equipment, withstanding extreme temperature fluctuations.

Problem Solved

Ensures robust and reliable electrical connectivity in railway systems, enduring wide temperature swings and meeting stringent industry standards.

Railway applications-60°C to 110°C800VVibration resistant

3. Wiring in Hazardous (Ex) Zone Environments

Certified for use in Ex zones, this terminal block provides safe and reliable electrical connections in potentially explosive atmospheres such as chemical plants or oil and gas facilities. Its push-in technology allows for secure, tool-free wiring, minimizing the risk of sparks during installation and maintenance in critical hazardous locations.

Problem Solved

Offers safe and compliant electrical connections in hazardous areas, reducing spark risk and simplifying installation in explosive environments.

Ex zoneATEXPush-in connectionSpark preventionChemical plantsOil & Gas
