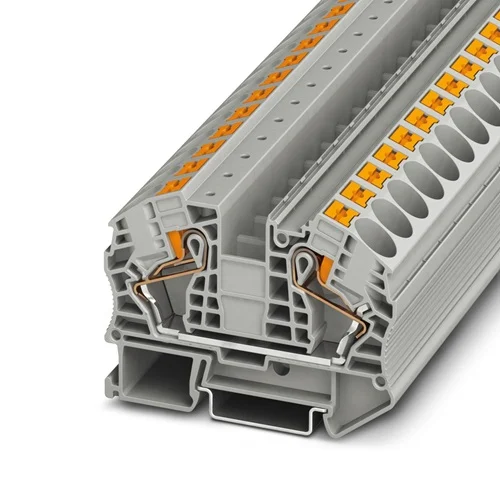

Name: Phoenix Contact PT 16 N Feed-Through Terminal Block - INOSAKI
SKU: Phoenix-3212138
Price: 3.73 USD
Availability: InStock

Technical Overview

1000V, 76A feed-through terminal block with push-in connection. Supports 0.5-25mm² conductors. DIN rail mountable, -60°C to 85°C. Railway compliant.

Key Features

Tool-free push-in connection for easy and quick wiring of solid or ferruled conductors.
Compatible with CLIPLINE complete system accessories, including bridging, marking, and testing components.
Compact design and front connection optimize wiring in confined spaces.
Features an additional test pick-off in the double function shaft for convenient testing.
Tested for railway applications, compliant with DIN EN 45545-2 fire protection standards.
Vibration-resistant and maintenance-free connection ensures reliability in demanding environments.
High current capacity, supporting a maximum load current of 85 A with 25 mm² rigid conductors.
Wide conductor cross-section range from 0.5 mm² to 25 mm² (20-4 AWG).

Technical Specification Matrix

Parameter	Value
Nominal Voltage	1000 V
Nominal Current	76 A
Maximum Load Current (with 25 mm² rigid conductor)	85 A
Number of Connections	2
Connection Method	Push-in connection
Rated Cross Section	16 mm²
Conductor Cross Section (rigid/flexible)	0.5 mm² - 25 mm²
AWG Range	20 - 4 AWG
Stripping Length	18 mm - 20 mm
Mounting Type	DIN Rail (NS 35/7,5, NS 35/15)
Color	Gray (RAL 7042)
Insulating Material	PA
Flammability Rating	UL 94 V-0
Operating Temperature Range	-60 °C to 85 °C
Overvoltage Category	III
Degree of Pollution	3
Rated Surge Voltage	8 kV
Physical Weight (kg)	0.03
Dimensions L x W x H (cm)	5.26 x 1.22 x 7.54

Industrial Applications

1. High-Current Power Distribution in Industrial Control Panels

This terminal block is ideal for connecting high-power circuits within industrial control panels, facilitating the distribution of 1000V, 76A power to various components. Its compact design and front connection allow for efficient wiring in often space-constrained enclosures.

Problem Solved

Provides a robust, high-current, and space-saving connection solution for demanding industrial power distribution, minimizing wiring time with push-in technology.

1000V76A25mm²Push-in connectionDIN railCompact design

2. Railway Rolling Stock Power Wiring

Given its testing for railway applications (DIN EN 45545-2 fire protection) and robust vibration-resistant design, this terminal block is perfectly suited for power wiring within railway vehicles and on-board control systems, where high voltage (1000V) and current (76A) stability are critical under dynamic conditions.

Problem Solved

Ensures safe, reliable, and compliant high-power electrical connections in railway environments subject to vibration, temperature fluctuations (-60°C to 85°C), and strict fire safety standards.

Railway applications1000V76AVibration-resistant-60°C to 85°CDIN EN 45545-2

3. Heavy-Duty Machine Building Power Interconnects

For large machinery requiring reliable power connections, this terminal block offers a secure and maintenance-free solution for conductors up to 25 mm² at 1000V/76A. The push-in technology simplifies installation during machine assembly and reduces long-term maintenance needs.

Problem Solved

Provides robust and quick-to-install power connections for heavy machinery, ensuring long-term stability and reducing downtime due to wiring issues in high-power applications.

1000V76A25mm²Push-inMaintenance-freeMachine building
