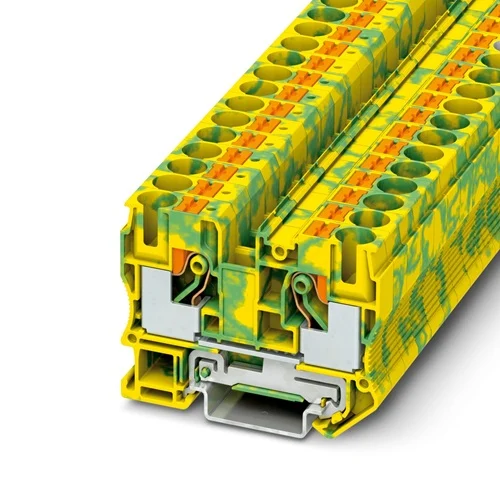

Name: Phoenix Contact PT 10-PE Protective Conductor Terminal Block - INOSAKI
SKU: Phoenix-3212131
Price: 9.70 USD
Availability: InStock

Technical Overview

Protective conductor terminal block with push-in connection for 0.5-16mm² (20-6 AWG) wires. Features -60 to 110°C operating temp and 8kV surge.

Key Features

Tool-free push-in connection reduces installation time and eliminates the need for screwdrivers.
Vibration-resistant and maintenance-free design for long-term reliability.
Direct DIN rail contacting enables fast, error-free grounding without additional wiring.
Compatible with CLIPLINE complete bridging, marking, and testing accessories.
Wide operating temperature range of -60 °C to 110 °C for demanding environments.
Grounding foot ensures low-resistance connection to ground potential via the top-hat rail.
Suitable for use in potentially explosive (Ex) zones with ATEX/IECEx identification II 2 GD Ex eb IIC Gb.
Compliant with railway fire protection standard DIN EN 45545-2 R22, R23, R24, R26 HL 1 - HL 3.

Technical Specification Matrix

Parameter	Value
Connection Method	Push-in connection
Number of Connections	2
Number of Rows/Levels	1
Nominal Cross Section	10 mm²
Conductor Cross-section (Rigid)	0.5 mm² - 16 mm²
Conductor Cross-section (Flexible)	0.5 mm² - 16 mm²
Conductor Cross-section (Flexible, Ferrule with Plastic Sleeve)	0.5 mm² - 10 mm²
Cross Section AWG	20 - 6
Stripping Length	18 mm - 20 mm
Mounting Type	NS 35/7.5, NS 35/15 (DIN rail)
Overvoltage Category	III
Degree of Pollution	3
Rated Surge Voltage	8 kV
Rated Operating Voltage (IEC)	1000 V
Rated Operating Voltage (UL/CSA)	600 V
Rated Operating Voltage (Ex)	550 V
Maximum Power Dissipation	1.82 W
Color	Green-yellow
Insulating Material	PA, group I
Flammability Rating	UL 94 V0
Operating Temperature (Operation)	-60 °C to 110 °C
Operating Temperature (Storage/Transport)	-25 °C to 60 °C
ATEX/IECEx Identification	II 2 GD Ex eb IIC Gb
Railway Fire Protection	DIN EN 45545-2 R22, R23, R24, R26 HL 1 - HL 3
Approvals	CSA (ID 158887), UL, EAC, VDE, BV, GL, DNV, LR, ClassNK, CB scheme
Physical Weight (kg)	0.03
Dimensions L x W x H (cm)	4.95 x 1.02 x 6.79

Industrial Applications

1. Railway Rolling Stock Electrical Cabinets

The PT 10-PE terminal block is ideal for grounding electrical systems within railway rolling stock, such as passenger trains or locomotives. Its robust design and compliance with DIN EN 45545-2 railway fire protection standards ensure safety and reliability in demanding transport environments.

Problem Solved

Provides secure, vibration-resistant grounding connections crucial for operational safety in high-vibration railway applications, meeting strict fire safety regulations.

DIN EN 45545-2railway fire protectionvibration-resistantgrounding1000 V rated voltage

2. Chemical Processing Plants (Hazardous Locations)

This protective conductor terminal block can be employed in electrical control panels within chemical processing facilities, particularly in areas classified as hazardous (Ex zones). Its ATEX/IECEx certification ensures safe operation and grounding in potentially explosive atmospheres.

Problem Solved

Offers reliable earthing in explosive environments, preventing static discharge and ensuring equipment safety, compliant with ATEX/IECEx standards for hazardous areas.

ATEX/IECExhazardous locationsEx zonegroundingchemical plantprotective earthing

3. Heavy Industrial Machinery and Plant Engineering

The PT 10-PE is suitable for protective earthing in heavy industrial machinery and large plant engineering installations, where robust and quick-to-install grounding is essential. Its wide operating temperature range and high surge voltage rating provide durability and protection against electrical transients.

Problem Solved

Ensures robust and reliable grounding for high-power industrial equipment, withstanding harsh operating temperatures and providing protection against high surge voltages, crucial for machine and operator safety.

Industrial machineryplant engineeringgrounding8 kV surge voltage-60 °C to 110 °Cpush-in connection16 mm² conductor
