Pepperl+Fuchs V15-G-10M-PUR 10 m PUR cordset with straight 5-pin M12 female A-coded connector, bare cable end, 4 A rating and IP66/IP68/IP69 protection.

SKU PEPPERL-FUCHS-V15-G-10M-PUR Category PEPPERL+FUCHS Sensor-Actuator Cables

Top Brands > PEPPERL+FUCHS > PEPPERL+FUCHS Sensor-Actuator Cables

Pepperl+Fuchs V15-G-10M-PUR M12 Female Cordset

BrandPepperl+Fuchs

Model IdentifierV15-G-10M-PUR

Official Part NumberV15-G-10M-PUR

Technical Overview

The Pepperl+Fuchs V15-G-10M-PUR is a single-ended 10 m sensor-actuator cordset with a straight 5-pin A-coded M12 female socket and unterminated cable end. Its grey PUR cable has five 0.34 mm² conductors and supports up to 48 V AC / 60 V DC and 4 A; the connector is rated IP66/IP68/IP69. The connector operating range is -40 to 90 °C, while the cable is rated -40 to 80 °C in fixed installation and -25 to 80 °C when flexing; Pepperl+Fuchs lists it in stock.

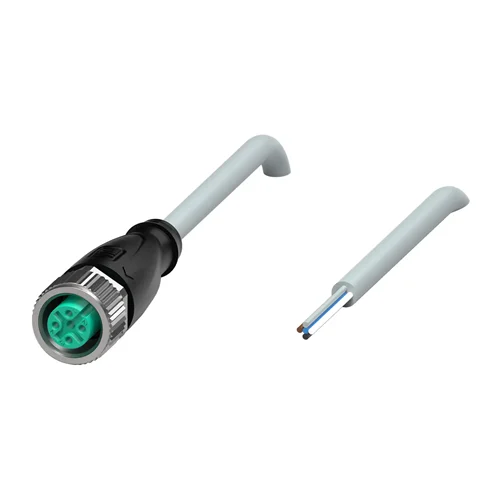

10 m grey PUR cordset with straight 5-pin M12 A-coded female socket, bare cable end, and IP66/IP68/IP69 protection.

Key Features

Passive sensor-actuator cordset; no sensing element or imaging silicon
10 m length, 4.8 mm cable sheath diameter, and five 0.34 mm² conductors
No shutter or pixel resolution; this is an electrical connection accessory
Maximum operating voltage 48 V AC / 60 V DC and current 4 A
No onboard processor or AI; no communication bandwidth is specified for this power/signal cordset
Straight 5-pin A-coded M12 female connector to unterminated cable end
Connector IP66/IP68/IP69; minimum 100 mating cycles and integrated loosening protection
Grey PUR jacket, bare copper conductors, halogen-free and hydrolysis/microbe resistant
Manufacturer product page lists this cordset in stock

Technical Specification Matrix

Parameter	Value
Sensor	Not a sensor; passive single-ended cordset
Shutter	Not applicable
Resolution	Not applicable; electrical cordset
Pixel size	Not applicable
Optical sensor class	Not applicable
Optical sensor size	Not applicable
Frame rate	Not applicable; no data rate specified
Exposure time	Not applicable
Power consumption	Passive cable; consumption depends on connected equipment
Power supply	No supply required; rated max. 48 V AC / 60 V DC and 4 A
Image memory	Not applicable
Operating temperature	Connector: -40 to 90 °C; cable fixed: -40 to 80 °C; cable flexing: -25 to 80 °C
Storage temperature	Not specified separately by the manufacturer
Relative humidity	Humidity resistance not quantified; resistant to hydrolysis and microbes
Interface	M12 x 1, A-coded, 5-pin passive cordset; IEC 61076-2-101
I/O connector	Straight M12 female socket, 5 pins, to unterminated cable; 5 x 0.34 mm² cores
Lens mount	Not applicable
IP rating	IP66 / IP68 / IP69 at M12 connector
Housing material	Zinc die-cast nickel-plated coupling; TPU connector body; FKM seal; PUR cable sheath; PP core insulation
Physical Weight (kg)	0.331
Dimensions L x W x H (cm)	18.8 x 9.4 x 4.7

Suggested applications

Engineering suggestions require suitability checks for your installation.

1. M12 sensor connection in a machine cell

A sensor or actuator with a compatible 5-pin A-coded connector may need a 10 m cable run to a junction box or control cabinet.

Potential use

The single-ended cordset provides a five-conductor M12 female connection and unterminated cable end for compatible wiring. Verify pin assignment, supply/load current, cable routing, and the mating device's required environmental rating.

10 m 5-pin M12 A-coded 4 A PUR jacket

2. Moisture-exposed equipment connection

Equipment in a production area may require a sealed connector and a cable jacket intended to withstand humid or washdown-adjacent conditions.

Potential use

The M12 connector's IP66/IP68/IP69 ratings and the cable's hydrolysis and microbial resistance can support suitable installations when correctly mated and routed. Confirm cleaning chemicals, pressure, temperature, and the IP rating of the complete connection.

IP66/IP68/IP69 Hydrolysis resistant Halogen-free -25 to 80 °C flexing
