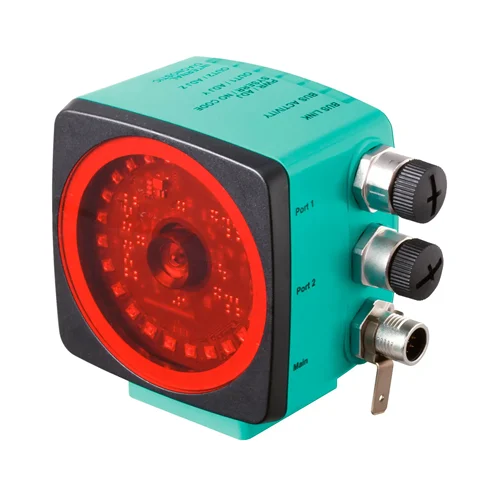

Name: Pepperl+Fuchs PXV100-F200-B25-V1D Optical Reading Head - INOSAKI
SKU: PEPPERL-FUCHS-PXV100-F200-B25-V1D
Price: 105.12 USD
Availability: InStock

Technical Overview

Non-contact optical reading head with EtherNet/IP, 15-30VDC, IP67, 0.2mm resolution, and 10km travel range for precise industrial positioning.

Key Features

EtherNet/IP interface for industrial communication.
Non-contact positioning on Data Matrix code tape for wear-free operation.
Mechanically rugged design with no wearing parts, ensuring long operating life and maintenance-free performance.
High resolution (0.2 mm) and precise positioning capabilities.
Integrated switch for simplified network architecture.
Supports extensive travel ranges up to 10 km.
Integrated red LED lighting for reliable code reading.
USB Service interface for configuration and diagnostics.
IP67 protection degree for resistance against dust and water ingress.
7 LEDs provide clear indication for communication, alignment aid, and status information.

Technical Specification Matrix

Parameter	Value
Operating Voltage	15 ... 30 V DC (PELV)
No-load Supply Current	max. 400 mA
Power Consumption	6 W
Protection Degree	IP67
Operating Temperature	0 ... 60 °C (32 ... 140 °F)
Storage Temperature	-20 ... 60 °C (-4 ... 140 °F) (non-condensing; prevent icing on the lens!)
Max. Passage Speed	≤ 8 m/s
Max. Measuring Length	10000 m (10 km)
Read Distance	100 mm
Depth of Focus	± 50 mm
Reading Field	115 mm x 73 mm
Resolution	0.2 mm
Light Type	Integrated LED lighting (red)
Housing Material	PC / ABS
Interface Type 1	100 BASE-TX (EtherNet/IP)
Interface Type 2	USB Service
Connection Type	8-pin, M12x1 connector (supply+IO); M12 (4-pin) connector (female D-coded; LAN)
Physical Weight (kg)	0.2
Dimensions L x W x H (cm)	8 x 7 x 3.85

Industrial Applications

1. Automated Guided Vehicle (AGV) Navigation

This optical reading head is ideal for precise path guidance and positioning of AGVs in warehouses and manufacturing facilities. Its non-contact reading of Data Matrix code tape laid on the floor allows for highly accurate navigation, even around corners and through merges, with a resolution of 0.2 mm over distances up to 10 km.

Problem Solved

Ensuring accurate and reliable navigation for AGVs in complex industrial environments, reducing deviations and improving efficiency in material handling.

AGV NavigationData Matrix CodeHigh Precision Positioning10 km Travel RangeNon-contact Sensing0.2 mm Resolution

2. Overhead Conveyor Systems in Harsh Environments

With an IP67 rating and a 0-60°C operating temperature range, the PXV100-F200-B25-V1D is well-suited for positioning control on overhead conveyor systems in dusty or damp industrial settings, such as automotive assembly lines or logistics centers. Its robust design ensures long-term, maintenance-free operation.

Problem Solved

Providing durable and precise position feedback for conveyor systems in challenging industrial conditions where dirt, dust, or moisture are present, minimizing downtime due to sensor failure.

Conveyor PositioningIP67Dust ResistanceWater ResistanceMaintenance-freeIndustrial Automation

3. Automated Crane and Hoist Positioning

The ability to track positions over 10 km with a resolution of 0.2 mm makes this sensor excellent for controlling the exact position of automated cranes, hoists, and stacker cranes in large-scale storage and retrieval systems. The high passage speed of 8 m/s supports rapid material movement, while the EtherNet/IP interface allows for seamless integration into control systems.

Problem Solved

Achieving highly accurate and fast positioning for heavy-duty material handling equipment across extensive operational areas, enhancing throughput and preventing positional errors.

Crane PositioningHoist ControlAutomated Storage and Retrieval Systems (AS/RS)High Speed TrackingEtherNet/IP IntegrationLong Distance Measurement
