Name: Pepperl+Fuchs PGV100-F200A-B17-V1D Optical Reading Head - INOSAKI
SKU: PEPPERL-FUCHS-PGV100-F200A-B17-V1D
Price: 1133.28 USD
Availability: InStock

Technical Overview

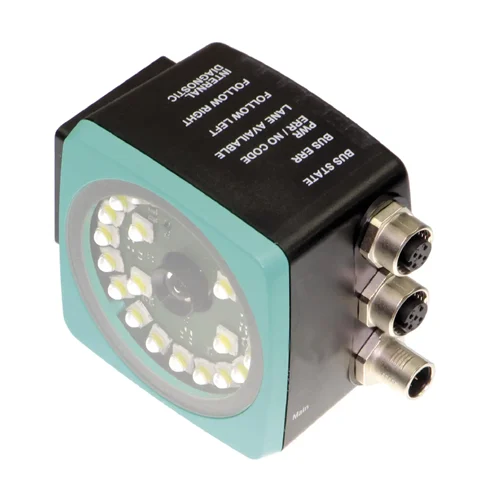

Optical reading head with PROFINET and USB interfaces, 15-30V DC, IP67 rated, for non-contact positioning on Data Matrix codes or colored strips.

Key Features

Mechanically rugged: no wearing parts, long operating life, maintenance-free.
PROFINET interface (100 BASE-TX, Conformance class A).
Non-contact positioning on Data Matrix code tape.
Noncontact positioning with Data Matrix TAGs.
Noncontact lane tracking of a colored strip.
Reading of Data Matrix control codes.
Integrated white/blue LED lighting.
USB Service interface.
IP67 degree of protection.
Operating temperature range of 0 to 60 °C (32 to 140 °F) or -20 to 60 °C (-4 to 140 °F) (non-condensing).

Technical Specification Matrix

Parameter	Value
Operating Voltage	15-30 V DC (PELV)
Power Consumption	6 W
Max. Passage Speed	≤ 8 m/s
Max. Measuring Length	10000 m
Light Type	Integrated LED lighting (white/blue)
Scan Rate	25 s-1
Latency	60 ms
Read Distance	100 mm
Depth of Focus	± 20 mm
Reading Field	120 mm x 80 mm
Ambient Light Limit	100000 Lux
Primary Interface	PROFINET IO Real-Time (RT) Conformance class A (100 BASE-TX)
Secondary Interface	USB Service
Input Type	1 function input (0-level: -UB or unwired, 1-level: +8 V ... +UB, programmable)
Output Type	1 to 3 switch outputs, PNP, programmable, short-circuit protected
Switching Current	150 mA each output
Housing Material	PC/ABS
Connection Type	8-pin, M12x1 connector (supply+IO); 4-pin, M12x1 socket, D-coded (LAN)
Degree of Protection	IP67
Operating Temperature	0 ... 60 °C (32 ... 140 °F), -20 ... 60 °C (-4 ... 140 °F) (non-condensing; prevent icing on the lens!)
Storage Temperature	-20 ... 85 °C (-4 ... 185 °F)
Relative Humidity	90 % , non-condensing
Shock Resistance	EN 60068-2-27:2009
Vibration Resistance	EN 60068-2-6:2008
Physical Weight (kg)	0.26
Dimensions L x W x H (cm)	7 x 7 x 5

Industrial Applications

1. Automated Guided Vehicles (AGVs) Navigation

The PGV100-F200A-B17-V1D optical reading head is ideal for precise path guidance of AGVs in industrial settings. Its non-contact reading of Data Matrix codes or colored strips at speeds up to 8 m/s ensures efficient and continuous autonomous navigation. The PROFINET interface allows for seamless integration into the vehicle's control system, and the IP67 rating guarantees robustness in varied industrial environments.

Problem Solved

Provides accurate and reliable autonomous navigation for AGVs, reducing human error and improving logistical efficiency within manufacturing plants and warehouses by following predefined tracks.

AGV navigationData Matrix codePROFINETIP678 m/s passage speednon-contact positioning15-30V DC

2. Material Handling and Conveyor Belt Positioning

Integrated into conveyor systems, this optical reading head accurately monitors and controls the position of products or carriers. With a fast scan rate of 25 s-1 and high passage speed, it enables real-time tracking for sorting, merging, and diverting operations. The robust PC/ABS housing and IP67 protection make it suitable for dusty and wet industrial conveyor environments.

Problem Solved

Ensures precise material flow on conveyor belts by accurately tracking product positions, preventing misalignments, and optimizing throughput in automated sorting and handling systems.

Conveyor systemmaterial handlingprecise positioningData Matrix codePROFINETIP6725 s-1 scan rate

3. Automated Storage and Retrieval Systems (AS/RS) Guidance

For AS/RS shuttles or forklifts, the PGV100-F200A-B17-V1D facilitates accurate horizontal and vertical positioning by reading floor-mounted Data Matrix codes or colored lines. Its ±20 mm depth of focus accommodates minor variations, while the wide operating temperature range of -20 to 60 °C ensures consistent performance in diverse warehouse conditions, including unheated or cooled zones.

Problem Solved

Enables highly accurate and repeatable picking and placing operations in AS/RS, optimizing storage density, increasing operational speed, and minimizing errors in automated warehouses.

AS/RS guidanceprecise positioningData Matrix codePROFINET-20 to 60 °C operating temperature±20 mm depth of focusIP67
