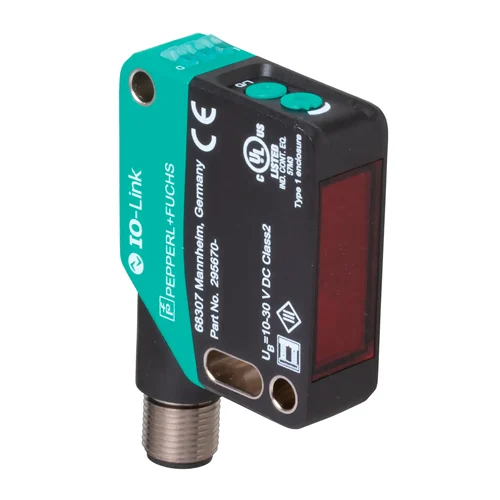

Precise distance sensor with 1mm resolution, 10m range, IO-Link, and 4-20mA analog output for industrial applications.
Precise distance sensor with 1mm resolution, 10m range, IO-Link, and 4-20mA analog output for industrial applications.
| Parameter | Value |
|---|---|
| Measuring Range | 0.03 ... 10 m |
| Operating Voltage (UB) | 18 ... 30 V DC |
| No-load Supply Current | < 25 mA |
| Interface Type | IO-Link (via C/Q = pin 4) |
| IO-Link Revision | V1.1.3 |
| Communication Interface | IEC 61131-9 / IO-Link V1.1.3 |
| Output Type | 1 current output: 4 ... 20 mA |
| Switching Output | Q1: switching signal high-active, Window mode (push-pull) |
| Warm-up Time | 5 min |
| Ambient Temperature | -30 ... 60 °C |
| Storage Temperature | -40 ... 70 °C |
| Degree of Protection | IP67 / IP69 / IP69K |
| Laser Class | 1 (red laser light) |
| Resolution | 1 mm |
| Repeat Accuracy | < 3 mm |
| Temperature Influence Error | < 0.25 mm/K |
| Beam Divergence | 2 mrad |
| Housing Material | Polycarbonate (PC) |
| Optical Face Material | PMMA |
| Approvals | UL approval E87056, cULus Listed, class 2 power supply, type rating 1 |
| Measuring Method | PRT (Pulse Ranging Technology) |
| Physical Weight (kg) | 0.06 |
| Dimensions L x W x H (cm) | 7.73 x 2.99 x 5.06 |
This sensor is ideal for precise positioning tasks within automated storage and retrieval systems, ensuring accurate placement and retrieval of goods in high-bay warehouses.
Provides highly accurate and repeatable position feedback for shuttle cars and robotic arms, preventing misalignments and improving operational efficiency in AS/RS.
Suitable for non-contact continuous monitoring of fill levels for liquids or bulk materials in industrial tanks and silos, especially in challenging environments.
Offers continuous, precise level measurement up to 10m with robust IP67/IP69/IP69K protection, ensuring reliable data acquisition in dusty, wet, or washdown conditions.
Utilized for detecting, measuring, and verifying the height or position of objects on conveyor belts for quality inspection, sorting, and optimizing material flow.
Delivers 1mm resolution and <3mm repeat accuracy with a fast repetition rate, enabling precise measurement of objects moving on a conveyor for automated quality control and sorting.
