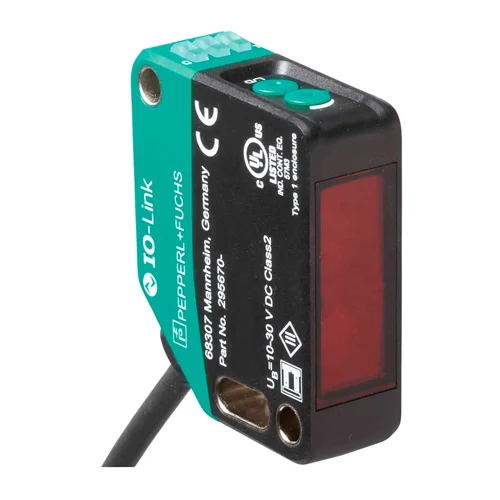

Name: Pepperl+Fuchs OBT600-R200-2EP-IO-L Triangulation Sensor - INOSAKI
SKU: PEPPERL-FUCHS-OBT600-R200-2EP-IO-L
Price: 113.28 USD
Availability: InStock

Technical Overview

Laser diffuse mode photoelectric sensor with 40-600mm detection, IP67/IP69/IP69K, 10-30VDC, IO-Link, and -40 to 60°C operating temperature.

Key Features

Medium design with versatile mounting options.
DuraBeam Laser Sensors - durable and employable like an LED.
Extended temperature range from -40 °C to 60 °C.
High degree of protection, rated IP67, IP69, and IP69K.
IO-Link interface for efficient service and process data communication.
Laser diffuse mode sensor with adjustable background suppression.
Multi Pixel Technology (MPT) ensures flexibility and adaptability to application environments.
Two push-pull (4-in-1) outputs with short-circuit, reverse polarity, and overvoltage protection.

Technical Specification Matrix

Parameter	Value
Detection Range	40 ... 600 mm
Detection Range Min.	40 ... 90 mm
Detection Range Max.	40 ... 600 mm
Adjustment Range	90 ... 600 mm
Light Source	Laser diode
Light Type	Modulated visible red light
Laser Class	1
Wavelength	680 nm
Diameter of Light Spot	approx. 2.5 mm at a distance of 600 mm
Operating Voltage (UB)	10 ... 30 V DC
No-load Supply Current (I0)	< 15 mA at 24 V supply voltage
Protection Class	III
Interface Type	IO-Link (via C/Q = BK)
IO-Link Revision	1.1
Transfer Rate	COM2 (38.4 kBit/s)
Min. Cycle Time	2.3 ms
Signal Output	2 push-pull (4 in 1) outputs
Switching Voltage	max. 30 V DC
Switching Current	max. 100 mA, resistive load
Response Time	300 µs
Switching Frequency	1650 Hz
Ambient Temperature	-40 ... 60 °C
Ingress Protection	IP67, IP69, IP69K
Connection Method	Cable
Cable Length	2 m
Physical Weight (kg)	0.04
Dimensions L x W x H (cm)	4.17 x 1.5 x 5.06

Industrial Applications

1. Automated Conveyor Belt Object Detection in Harsh Environments

This sensor accurately detects packages or products on conveyor belts, even in industrial settings with high dust, water spray, or chemical washdowns. Its background suppression ensures reliable operation irrespective of conveyor belt color or reflectivity.

Problem Solved

Ensures continuous production flow and prevents errors by reliably detecting objects in challenging, potentially wet or dusty environments (e.g., food & beverage processing, material handling), leveraging its IP69K rating for direct washdown capability and the 40-600mm detection range for varied product sizes.

Object detectionConveyor systemIP69KBackground suppressionFood processingMaterial handling

2. Precise Component Presence Sensing in Automotive Assembly

Utilizing its Class 1 laser and small 2.5mm light spot, this sensor can precisely verify the presence or absence of small components during critical stages of automotive assembly, adaptable to variations in background reflectivity.

Problem Solved

Enhances quality control by confirming precise component placement, thereby reducing assembly errors in automotive manufacturing. The IO-Link capability allows for rapid re-parameterization to accommodate different car models or component specifications, while the extended temperature range supports diverse factory floor conditions.

Assembly automationQuality controlComponent verificationPrecision sensingLaser sensorIO-LinkAutomotive manufacturing

3. Basic Level Threshold Detection in Industrial Bins/Tanks

When paired with an appropriate target or float mechanism, this robust sensor can provide simple level threshold detection in non-transparent industrial tanks or bins, signaling when a specific fill level is reached.

Problem Solved

Offers a durable, non-contact solution for monitoring material levels in harsh industrial environments where traditional contact sensors may suffer from corrosion or wear. Its high IP rating (IP67/IP69/IP69K) ensures reliability in outdoor or washdown applications, with a detection range suitable for medium-sized containers.

Level controlMaterial handlingNon-contact sensingIndustrial tanksIP69KProcess automation
