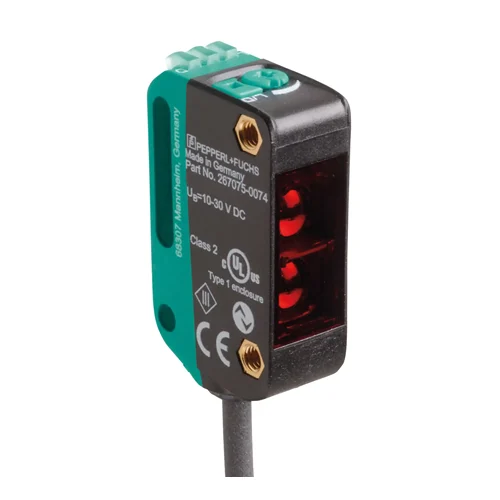

Name: Pepperl+Fuchs OBT150-R100-2EP-IO Triangulation Sensor - INOSAKI
SKU: PEPPERL-FUCHS-OBT150-R100-2EP-IO
Price: 128.40 USD
Availability: InStock

Technical Overview

Miniature triangulation sensor with background suppression for precise, color-independent object detection in harsh industrial environments with IO-Link.

Key Features

Miniature design with versatile mounting options.
Best background suppressor (BGS) in its class.
Precision object detection, almost irrespective of object color.
Extended ambient temperature range of -40 °C to 60 °C.
High degree of protection: IP67, IP69, IP69K.
IO-Link interface for service and process data.
Uses modulated visible red light LED as light source.
Adjustable switching type.

Technical Specification Matrix

Parameter	Value
Detection Range	5 ... 150 mm
Operating Voltage	10 ... 30 V DC
Degree of Protection	IP67 / IP69 / IP69K
Ambient Temperature	-40 ... 60 °C
Light Source	LED
Light Type	modulated visible red light
Light Spot Diameter	approx. 10 mm at 150 mm distance
Interface Type	IO-Link (via C/Q = BK)
Switching Type	Adjustable
Physical Weight (kg)	0
Dimensions L x W x H (cm)	2.54 x 1.1 x 3

Industrial Applications

1. Automated Assembly Lines (Small Part Detection)

This sensor is ideal for robotic assembly cells or pick-and-place operations where reliable detection of small components on a conveyor or within a fixture is critical. Its ability to accurately detect parts, even those with varying colors or reflective surfaces, against a background ensures precision.

Problem Solved

Prevents errors in assembly by providing precise presence/absence detection of small or irregularly colored parts, while avoiding false triggers from conveyor belts or machinery due to its background suppression capability. Its compact size (2.54 cm L x 1.1 cm W x 3.0 cm H) allows seamless integration into tight spaces.

Small part detectionprecision assemblyrobotic pick-and-placebackground suppressioncolor-independent detectioncompact sensor

2. Food and Beverage Processing (Washdown Environments)

The sensor is perfectly suited for monitoring product flow or position on conveyors in food and beverage facilities, which are characterized by frequent high-pressure washdowns and chemical cleaning procedures.

Problem Solved

The IP69K rating ensures the sensor withstands high-pressure, high-temperature washdowns, effectively preventing ingress of water and cleaning agents. Its extended temperature range of -40 °C to 60 °C accommodates the specific ambient conditions in these processing facilities.

IP69Kwashdownfood safetyhygienic designproduct trackinghigh temperaturerobust

3. Material Handling in Cold Storage/Outdoor Applications

This sensor can be deployed for detecting the presence of pallets, boxes, or vehicles in cold storage warehouses or exposed outdoor material handling areas.

Problem Solved

The wide operating temperature range of -40 °C to 60 °C ensures reliable performance in extremely cold environments or fluctuating outdoor temperatures. The IP67 rating provides robust protection against dust and temporary immersion, making it suitable for varying and often harsh outdoor conditions.

Cold storageoutdoor applicationtemperature extremesmaterial handlingobject presencerobustIP67
