Technical Overview

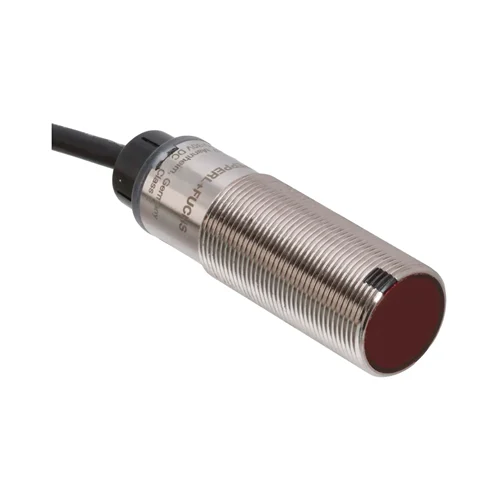

The Pepperl+Fuchs OBD500-18GM60-E5-IR-1C is an infrared diffuse-mode photoelectric sensor with a 30–500 mm adjustable operating range and an M18 x 1 metal housing. It uses an IRED source and provides a configurable PNP switching output, supplied by 10–30 V DC, with a 500 Hz switching frequency and response time of 1 ms or less. A 2 m fixed cable, IP67 protection, and a -40 to 60 °C operating range suit industrial sensing installations; the manufacturer product listing shows the model as in stock.
M18 infrared diffuse sensor with an adjustable 30–500 mm range, fast PNP switching, a 2 m cable, and IP67 protection.
Key Features
- Infrared photoelectric diffuse-mode sensor with IRED light source; no image sensor silicon specified
- Adjustable sensing range 30–500 mm for a standard white 200 x 200 mm target
- Non-imaging photoelectric detection; shutter and pixel pitch are not applicable
- Switching frequency 500 Hz and response time ≤1 ms; not a fieldbus or bandwidth-rated data interface
- No onboard image processor or AI acceleration specified; green power and yellow output-status indicators
- M18 x 1 threaded cylindrical housing; no camera lens mount
- Four-wire, 2 m fixed PVC cable; PNP output plus low-active light/dark input
- No image memory or frame buffer is used in this photoelectric sensor
- Manufacturer product page lists the model in stock; IP67 metal-housed sensor
Adjust the infrared sensing range from 30 to 500 mm and configure light-on or dark-on switching.
Technical Specification Matrix
| Parameter | Value |
|---|
| Sensor | Diffuse-mode photoelectric sensor; IRED infrared source |
| Shutter | Not applicable; non-imaging photoelectric detection |
| Resolution | Detection range 0–500 mm; adjustment range 30–500 mm (standard white 200 x 200 mm target) |
| Pixel size | Not applicable; no image sensor |
| Optical sensor class | Diffuse-mode infrared photoelectric sensor |
| Optical sensor size | Not specified; optical spot approx. 52 mm diameter at 500 mm |
| Frame rate | Not applicable; switching frequency 500 Hz |
| Exposure time | Not applicable; response time ≤1 ms |
| Power consumption | No-load supply current <25 mA |
| Power supply | 10–30 V DC; ripple ≤10%; protection class III |
| Image memory | Not applicable; no image memory |
| Operating temperature | -40 to 60 °C |
| Storage temperature | -40 to 70 °C |
| Relative humidity | Not specified in the product datasheet |
| Interface | One PNP open-collector output, short-circuit and reverse-polarity protected; max. 30 V DC, max. 100 mA resistive; switching frequency 500 Hz |
| I/O connector | 2 m fixed 4-wire PVC cable: brown L+, blue L−, black Q output, white low-active light/dark input |
| Lens mount | Not applicable; M18 x 1 threaded sensor body |
| IP rating | IP67 |
| Housing material | Nickel-plated brass housing; PMMA optical face; PVC cable |
| Physical Weight (kg) | 0.070 |
| Dimensions L x W x H (cm) | 6.0 x 1.8 x 1.8 |
Suggested applications
Engineering suggestions require suitability checks for your installation.
1. Presence detection on a conveyor
A packaging or assembly conveyor may need to detect cartons or other suitably reflective targets at a defined point without a separate reflector.
Potential use
The diffuse sensor can be adjusted for a 30–500 mm target distance, with a PNP output for a compatible controller input. Confirm the target's color, finish, size, and background conditions because diffuse sensing range depends on the target.
30–500 mm adjustable
Infrared IRED
PNP output
500 Hz
2. Object detection in a washdown-adjacent cell
An industrial cell may need a compact threaded sensor near routine moisture exposure while detecting items at a moderate standoff.
Potential use
The metal M18 body, IP67 protection, and adjustable infrared sensing range may suit this role when mounted and cabled according to the specified enclosure limits. Check the actual cleaning method, optical target properties, and connector/cable routing for the installation.
IP67
M18 x 1
2 m cable
-40 to 60 °C
