USD 65.00
M18 non-flush inductive sensor, 8 mm range, PNP NO 3-wire, 10–60 VDC, IP67, stainless steel housing.

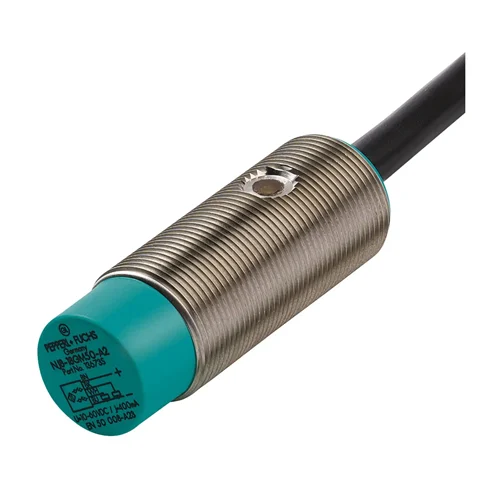

M18 cylindrical inductive proximity sensor with non-flush mounting, 8 mm nominal sensing distance, PNP normally-open 3-wire DC output, stainless steel housing, IP67 enclosure, and 2 m PVC cable. Verified from Pepperl+Fuchs technical documentation and distributor listings.
| Parameter | Value |
|---|---|
| Sensor type | Inductive sensor |
| Switching function | Normally open (NO) |
| Output type | PNP, 3-wire |
| Rated operating distance | 8 mm |
| Installation | Non-flush |
| Output polarity | DC |
| Operating voltage | 10 ... 60 V |
| Switching frequency | 0 ... 1000 Hz |
| Hysteresis | 1 ... 10 %, typ. 7.5 % |
| Reverse polarity protection | Reverse polarity protected |
| Short-circuit protection | Pulsing |
| Voltage drop | ≤ 3 V |
| Voltage drop at IL = 100 mA, switching element on | 1.5 ... 2.5 V, typ. 1.9 V |
| Operating current | 0 ... 200 mA |
| Lowest operating current | 0 mA |
| Off-state current | 0 ... 0.5 mA, typ. 0.01 mA |
| No-load supply current | ≤ 9 mA |
| Time delay before availability | ≤ 30 ms |
| Switching state indicator | LED, yellow |
| Standard conformity | EN IEC 60947-5-2 |
| UL approval | cULus Listed, General Purpose; Class 2 Power Source; Type 1; 60 V DC; 200 mA |
| CCC approval | Certified by China Compulsory Certification (CCC) |
| Ambient temperature | -25 ... 70 °C |
| Storage temperature | -40 ... 85 °C |
| Connection type | Cable |
| Cable material | PVC |
| Cable length | 2 m |
| Cable diameter | 6.4 mm ± 0.2 mm |
| Number of cores | 3 |
| Core cross section | 0.5 mm² |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face material | PBT |
| Degree of protection | IP67 |
| Housing diameter | 18 mm |
| Housing length | 50 mm |
| Thread size | M18x1 |
| Installation conditions A | 10 mm |
| Installation conditions B | 54 mm |
Detects ferrous or conductive metal targets at 8 mm nominal distance in a non-flush M18 body, making it suitable for confirming part arrival on conveyors or transfer stations.
Eliminates missed part-present signals in tight mechanical envelopes where a rugged IP67 sensor is needed.
The stainless M18 housing and 10–60 VDC operation suit fixture or mechanism end-position sensing on industrial machines where vibration and contamination are present.
Provides reliable position feedback in harsh factory environments without optical contamination issues.
IP67 sealing, PVC cable, and stainless construction support use near washdown or moisture-prone equipment for presence sensing of metal stops, carriers, or tooling.
Maintains stable switching in wet or dusty areas where sealed sensors are required.
