USD 70.15
M18 cylindrical inductive sensor featuring 8mm non-flush detection, NAMUR NC output, stainless steel housing, and IP67 rating for intrinsically safe spaces.

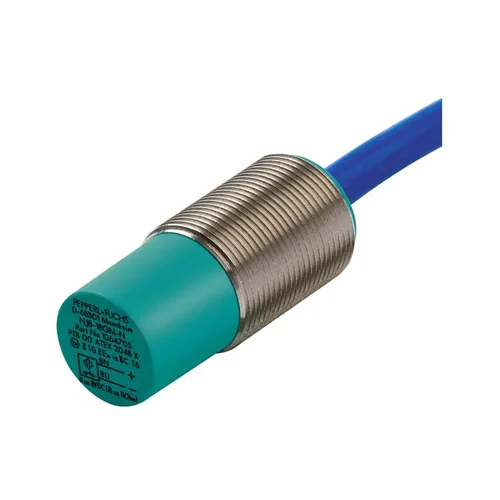

The Pepperl+Fuchs NJ8-18GM-N is a high-performance M18 inductive proximity sensor engineered for robust industrial and hazardous area applications. It features an 8 mm non-flush sensing range and utilizes a NAMUR Normally Closed (NC) output, making it ideal for intrinsically safe circuits when paired with a compatible switching amplifier. Constructed with a rugged stainless steel 1.4305 (AISI 303) housing and a PBT sensing face, this sensor withstands harsh environments and boasts an IP67 protection rating. It operates reliably across an extended temperature range of -25 °C to 100 °C. The unit is ATEX certified and usable in safety-critical applications up to SIL 2 per IEC 61508. A pre-wired 2-meter PVC cable ensures secure and straightforward integration.
| Parameter | Value |
|---|---|
| Housing Size | M18 (18 mm diameter) |
| Length | 40 mm |
| Sensing Distance | 8 mm (Non-flush) |
| Output Type | NAMUR, Normally Closed (NC) |
| Operating Voltage | 5 - 25 V DC |
| Nominal Voltage | 8.2 V DC |
| Switching Frequency | 0 - 200 Hz |
| Operating Temperature | -25 °C to 100 °C |
| Degree of Protection | IP67 |
| Connection | 2m PVC Cable (2-wire, 0.75 mm²) |
| Housing Material | Stainless steel 1.4305 / AISI 303 |
| Sensing Face Material | PBT |
| Safety Integrity Level | SIL 2 (IEC 61508) |
Detecting the open/close state of rotary and linear valves within explosive gas or dust environments using an intrinsically safe NAMUR signal.
Eliminates spark risks in hazardous ATEX 1G/Zone 0 areas while maintaining consistent detection up to 100 °C.
Counting metal gear teeth or rotating targets on drive shafts to accurately monitor conveyor velocity in heavy-duty industrial setups.
Enables precise pulse generation up to 200 Hz while resisting harsh dirt and moisture ingress via IP67-rated stainless steel encapsulation.
Sensing metal structural limits on outdoor cranes to prevent mechanical overtravel and potential structural damage during operation.
Ensures reliable operation despite drastic outdoor temperature fluctuations (-25 °C to +100 °C) without risking mechanical wear.
