USD 73.38

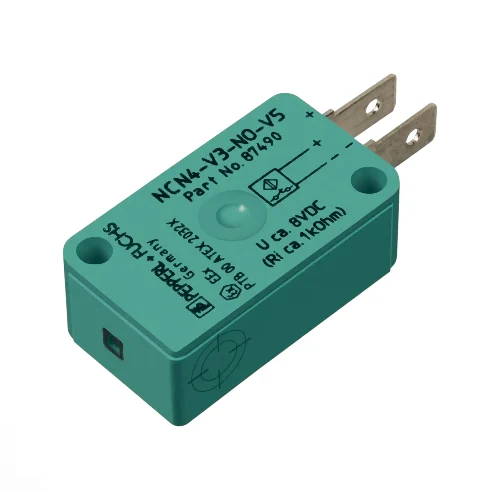

2mm flush NAMUR proximity sensor with PBT housing, faston connection, and up to 1000Hz frequency. SIL 2 rated, ideal for hazardous area position monitoring.
2mm flush NAMUR proximity sensor with PBT housing, faston connection, and up to 1000Hz frequency. SIL 2 rated, ideal for hazardous area position monitoring.
| Parameter | Value |
|---|---|
| Sensing Distance | 2 mm |
| Installation | Flush |
| Output Type | NAMUR (2-wire) |
| Switching Function | Normally closed (NC) |
| Nominal Voltage | 8.2 V DC (Ri approx. 1 kΩ) |
| Switching Frequency | 0 ... 1000 Hz |
| Ambient Temperature | -25 to 100 °C |
| Housing Material | PBT Resin |
| Degree of Protection | IP67 |
| Connection Type | 4.8 mm Faston |
| SIL Rating | SIL 2 |
| Physical Weight (kg) | 0.01 |
| Dimensions L x W x H (cm) | 3.7 x 1.02 x 1.6 |
Deploys the NAMUR 2-wire proximity sensor to monitor open and closed positions of quarter-turn valves in explosive atmospheres, securely transmitting signals via intrinsic safety barriers.
Safely detecting mechanical valve states in ATEX Zone 1/2 environments without risk of ignition.
Utilizes the high-frequency 1000 Hz switching capability and expanded thermal tolerance to monitor fast-moving metal spindle components in CNC machines.
Provides accurate speed and position detection under elevated machine temperatures up to 100°C.
Integrates the 2mm flush inductive sensor onto conveyor side rails using its Faston terminal connections to accurately count and position metallic transport pallets.
Provides reliable, non-contact limit switching for rapid part counting without mechanical wear.
