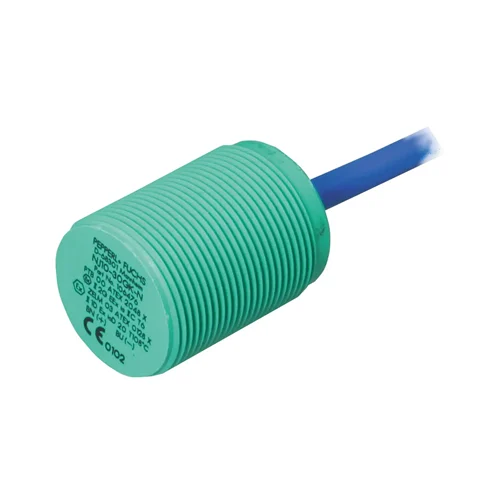

M30 x 1.5 non-flush inductive sensor with 15mm operating distance. Features NAMUR output, SIL 2 safety, IP68 protection, and -25 to 100°C operating temp.
M30 x 1.5 non-flush inductive sensor with 15mm operating distance. Features NAMUR output, SIL 2 safety, IP68 protection, and -25 to 100°C operating temp.
| Parameter | Value |
|---|---|
| Switching function | Normally closed (NC) |
| Output type | NAMUR, 2-wire |
| Rated operating distance (Sn) | 15 mm |
| Installation | non-flush |
| Assured operating distance (Sa) | 0... 12.15 mm |
| Reduction factor rAl | 0.4 |
| Reduction factor rCu | 0.3 |
| Reduction factor r304 | 0.85 |
| Nominal voltage (Uo) | 8.2 V (Ri approx. 1 kOhm) |
| Switching frequency (f) | 0... 100 Hz |
| Hysteresis (H) | 1... 5 % typ. 3 % |
| Current consumption (Measuring plate not detected) | min. 3 mA |
| Current consumption (Measuring plate detected) | ≤ 1 mA |
| Safety Integrity Level (SIL) | SIL 2 |
| MTTFd | 4560 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0% |
| Ambient temperature | -25 ... 100 °C (-13 ... 212 °F) |
| Connection type | cable |
| Housing material | PBT |
| Sensing face material | PBT |
| Degree of protection | IP66 / IP68 |
| Cable (Wire end ferrules) | yes |
| Cable diameter | 6 mm ± 0.2 mm |
| Cable bending radius | > 10 x cable diameter |
| Cable material | PVC |
| Cable color | blue |
| Cable number of cores | 2 |
| Cable core cross section | 0.75 mm² |
| Cable length | 2 m |
| Sensor body length | 40 mm |
| Sensor body diameter | 30 mm |
| Physical Weight (kg) | 0 |
| Dimensions L x W x H (cm) | 4 x 3 x 3 |
Utilizing its NAMUR output and IECEx/ATEX approvals, the sensor is ideal for reliable non-contact detection in explosive gas and dust atmospheres found in chemical plants, oil and gas facilities, and grain processing.
Provides intrinsically safe object presence feedback, preventing ignition sources in potentially explosive environments while ensuring operational continuity.
With SIL 2 compliance (IEC 61508), this sensor can be integrated into safety circuits for machine guarding applications, such as monitoring the position of safety gates or confirming material presence in critical zones.
Ensures a high level of functional safety for personnel and equipment by providing reliable position feedback that meets international safety standards.
The IP66/IP68 protection rating, robust PBT housing, and wide operating temperature range (-25 to 100 °C) make it perfect for reliable sensing in wet, dusty, or high-temperature industrial processes, like food and beverage, heavy machinery, or material handling.
Maintains accurate and consistent object detection performance despite exposure to water, dust, temperature extremes, or corrosive agents common in demanding industrial settings.
