Technical Overview

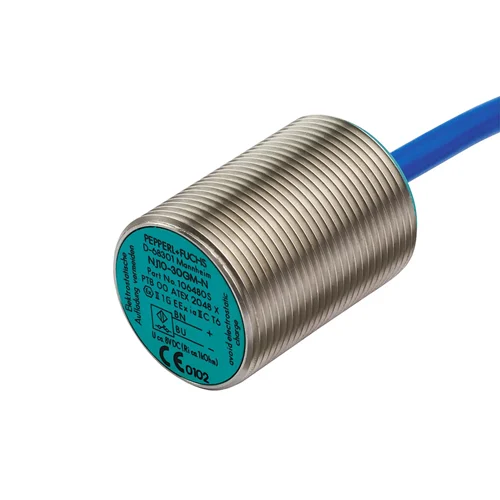

The Pepperl+Fuchs NJ10-30GM-N is a cylindrical M30 inductive proximity sensor with a 10 mm rated flush operating distance and a NAMUR normally closed output. Its two-wire circuit operates at a nominal 8.2 V and accepts 5–25 V, with switching up to 300 Hz; the sensor uses a preassembled 2 m cable rather than an imaging or network interface. A stainless-steel housing, IP66/IP67 protection, and a -25 to 100 °C ambient range support industrial installation, while the manufacturer lists use up to SIL 2.
M30 flush-mounted NAMUR inductive sensor with 10 mm rated sensing, a 2 m cable, SIL 2 capability, and IP66/IP67 protection.
Key Features
- Inductive sensing element; no imaging silicon or pixel array
- 10 mm rated operating distance; assured operating distance 0–8.1 mm
- Non-imaging inductive detection; shutter mechanism is not applicable
- Two-wire NAMUR output, normally closed, operating at nominal 8.2 V
- Switching frequency up to 300 Hz; no onboard processor or AI acceleration specified
- M30 x 1.5 threaded cylindrical body for flush installation; no lens interface
- Preassembled 2 m, 2-core PVC cable; sensor output is NAMUR rather than a multi-pin plug
- No image buffer or memory is used in this inductive sensor
- Manufacturer product page lists the model in stock; SIL 2-capable application per IEC 61508
Flush M30 installation combines a 10 mm rated sensing distance with NAMUR output and SIL 2 capability.
Technical Specification Matrix
| Parameter | Value |
|---|
| Sensor | Inductive proximity sensor; non-imaging |
| Shutter | Not applicable; inductive sensing principle |
| Resolution | Rated operating distance 10 mm; assured operating distance 0–8.1 mm |
| Pixel size | Not applicable; no image sensor |
| Optical sensor class | Not applicable; inductive sensor |
| Optical sensor size | Not applicable; inductive sensor |
| Frame rate | Not applicable; switching frequency 0–300 Hz |
| Exposure time | Not applicable; non-imaging sensor |
| Power consumption | Not separately specified; current consumption ≥3 mA with target absent and ≤1 mA with target present at nominal voltage |
| Power supply | Nominal 8.2 V DC (internal resistance approx. 1 kΩ); operating voltage 5–25 V |
| Image memory | Not applicable; no image memory |
| Operating temperature | -25 to 100 °C |
| Storage temperature | Not specified in the product datasheet |
| Relative humidity | Not specified in the product datasheet |
| Interface | Two-wire NAMUR output; normally closed; 0–300 Hz |
| I/O connector | Preassembled 2 m PVC cable, 2-wire (brown and blue); 0.75 mm² conductor cross-section |
| Lens mount | Not applicable; M30 x 1.5 threaded sensor body, flush installation |
| IP rating | IP66 / IP67 |
| Housing material | Stainless steel 1.4305 / AISI 303; PBT sensing face |
| Physical Weight (kg) | 0.210 |
| Dimensions L x W x H (cm) | 4.0 x 3.0 x 3.0 |
Suggested applications
Engineering suggestions require suitability checks for your installation.
1. Flush metal-part position sensing
A machine station may need to confirm a steel fixture or component is seated at a repeatable point without a protruding sensor face.
Potential use
The flush-mounted M30 inductive sensor detects metal targets at a 10 mm rated distance and provides a normally closed NAMUR signal for a compatible switching amplifier or intrinsically safe input. Verify target material, assured range, and interface compatibility in the final design.
10 mm rated distance
Flush M30
NAMUR
IP66/IP67
2. Hazardous-area machine status input
A process machine may require non-contact position feedback near an installation subject to hazardous-area and functional-safety design constraints.
Potential use
The manufacturer lists SIL 2 use and relevant approvals for the sensor variant; its NAMUR circuit can feed an appropriately selected safety or isolated input. Validate the full certificate conditions, installation, and system-level safety calculation before use.
SIL 2 capable
NAMUR 2-wire
Stainless steel
-25 to 100 °C
