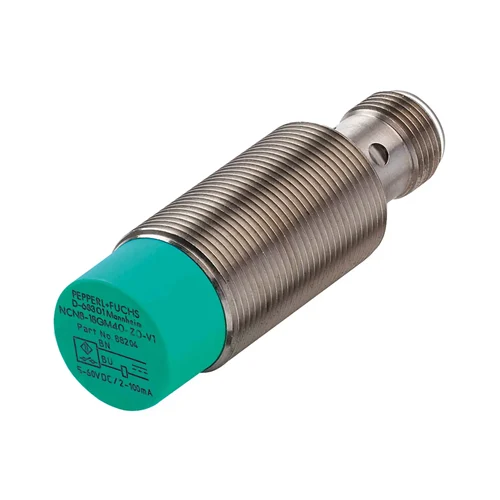

Name: Pepperl+Fuchs NBN8-18GM40-Z0-V1 Inductive Proximity Sensor - INOSAKI
SKU: PEPPERL-FUCHS-NBN8-18GM40-Z0-V1
Price: 46.08 USD
Availability: InStock

Technical Overview

Cylindrical M18 non-flush inductive proximity sensor with 8mm sensing, 5-60VDC, 2-wire NO output, 450Hz switching, and IP67 nickel-plated brass housing.

Key Features

8 mm rated operating distance for precise detection.
2-wire DC output with normally open (NO) switching function.
Wide operating voltage range from 5 V to 60 V DC.
High switching frequency up to 450 Hz.
Reverse polarity and pulsing short-circuit protection.
Durable nickel-plated brass housing and PBT sensing face.
IP67 degree of protection for demanding applications.
M12 x 1, 4-pin connector plug for easy installation.
Multihole yellow LED indicator for switching state.

Technical Specification Matrix

Parameter	Value
Switching Function	Normally open (NO)
Output Type	Two-wire
Rated Operating Distance (sn)	8 mm
Installation	Non-flush
Output Polarity	DC
Operating Voltage (UB)	5 ... 60 V DC
Switching Frequency (f)	0 ... 450 Hz
Hysteresis (H)	1 ... 10 % typ. 5 %
Reverse Polarity Protection	Reverse polarity tolerant
Short-Circuit Protection	Pulsing
Voltage Drop (Ud)	≤ 5 V
Operating Current (IL)	2 ... 100 mA
Lowest Operating Current (Im)	2 mA
Off-state Current (Ir)	0 ... 0.5 mA
Switching State Indicator	Multihole-LED, yellow
Ambient Temperature	-25 ... 70 °C (-13 ... 158 °F)
Connection Type	Connector plug M12 x 1, 4-pin
Housing Material	Brass, nickel-plated
Sensing Face Material	PBT
Protection Degree	IP67
Housing Diameter	M18 x 1 (18 mm)
Physical Weight (kg)	0
Dimensions L x W x H (cm)	4 x 1.8 x 1.8

Industrial Applications

1. Conveyor Belt Monitoring in Packaging Plants

Detecting the presence or absence of metallic packages or components on a conveyor belt in packaging lines.

Problem Solved

Ensures accurate product counts, prevents jams, and confirms product flow. Its IP67 rating makes it suitable for environments with dust or moisture, while non-contact operation prevents wear on products. The 8mm sensing distance allows for reliable detection of moving objects.

Object detectionPackaging automationConveyor systemNon-contact sensingIP67

2. Machine Tool Position Sensing

Precisely detecting the end-of-travel or home position of metallic parts within CNC machines or robotic arms.

Problem Solved

Provides reliable position feedback for machine control, preventing overtravel and ensuring precise manufacturing processes. The 8mm sensing distance combined with a high switching frequency of 450 Hz allows for accurate detection even with rapid movements.

Position sensingMachine automationRoboticsMetal detectionHigh-speed switching

3. Gate/Door Position Monitoring in Industrial Facilities

Monitoring the open/closed status of metallic access gates or safety doors in factories or warehouses.

Problem Solved

Enhances safety by confirming door positions and can be integrated into access control systems. Its robust nickel-plated brass housing and wide operating temperature range (-25 to 70 °C) ensure durability and reliable operation in challenging industrial environments.

Safety interlockAccess controlDoor statusIndustrial safetyWide temperature range
