USD 47.26

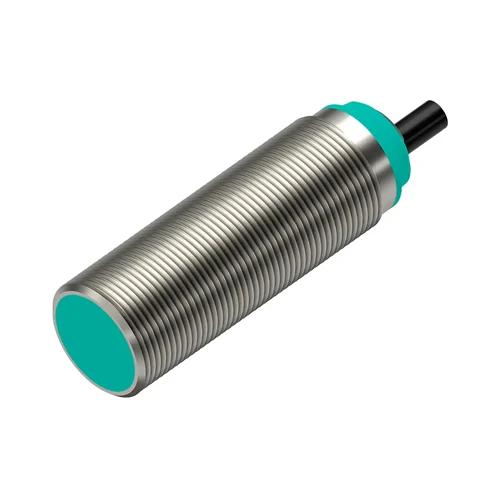

M18 flush-mount inductive proximity sensor with 8 mm sensing distance, PNP NO output, 6-36V DC operation, and -40 to +85 °C operating temperature.
M18 flush-mount inductive proximity sensor with 8 mm sensing distance, PNP NO output, 6-36V DC operation, and -40 to +85 °C operating temperature.
| Parameter | Value |
|---|---|
| Switching Function | Normally open (NO) |
| Output Type | PNP, 3-wire |
| Rated Operating Distance (sn) | 8 mm |
| Installation | Flush |
| Output Polarity | DC |
| Assured Operating Distance (sa) | 0 ... 6.48 mm |
| Actuating Element | Mild steel, e. g. 1.0037, SR235JR (formerly St37-2), 24 mm x 24 mm x 1 mm |
| Reduction Factor rAl | 0.38 |
| Reduction Factor rCu | 0.35 |
| Reduction Factor r304 | 0.74 |
| Reduction Factor rBrass | 0.47 |
| Operating Voltage (UB) | 6 ... 36 V |
| Switching Frequency (f) | 0 ... 1350 Hz |
| Hysteresis (H) | typ. 5 % |
| Reverse Polarity Protection | Reverse polarity protected |
| Short-Circuit Protection | Pulsing |
| Voltage Drop (Ud) | ≤ 1 V |
| Operating Current (IL) | 0 ... 200 mA |
| Off-state Current (Ir) | max. 20 µA |
| No-load Supply Current (I0) | ≤ 10 mA |
| Time Delay Before Availability (tv) | ≤ 10 ms |
| Switching State Indicator | LED, yellow |
| Ambient Temperature (Operation) | -40 ... +85 °C |
| Storage Temperature | -40 ... +85 °C |
| Rated Insulation Voltage (Ui) | 36 V |
| Rated Impulse Withstand Voltage (Uimp) | 500 V |
| Protection Class | II |
| Standard Conformity | EN IEC 60947-5-2 |
| UL Approval | cULus Listed, Load Type: General Purpose, Circuitry: Class 2 Power Source |
| Physical Weight (kg) | 0 |
| Dimensions L x W x H (cm) | 6.6 x 1.8 x 1.8 |
This sensor is perfectly suited for rapidly detecting small metallic components moving on a conveyor. Its high switching frequency enables accurate counting of fast-moving parts.
Ensures precise inventory management and production control by reliably counting parts without missing any, even at high speeds.
With its wide operating temperature range (-40 to +85 °C) and IP68 protection, the sensor provides reliable position feedback in heavy machinery exposed to harsh outdoor and industrial environments.
Guarantees consistent operation and safety in challenging conditions by accurately reporting the position of moving machine components, despite temperature extremes or exposure to dust and water.
The 8mm flush installation and stable sensing distance make this sensor ideal for verifying the presence or absence of metallic tools in machining centers, preventing operational errors.
Prevents potential machine damage and production faults by confirming that the correct tools are properly loaded and positioned before machining operations begin, improving safety and process reliability.
