USD 64.43

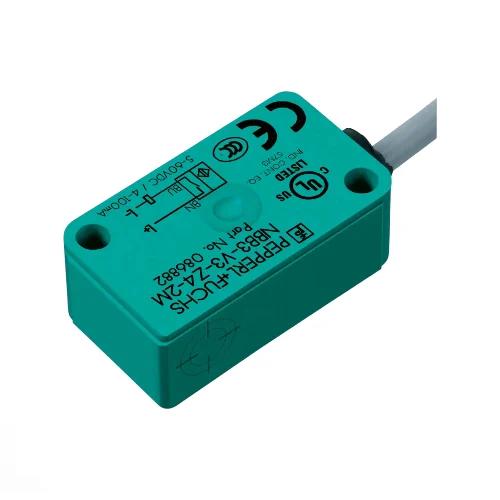

Compact 3mm flush proximity sensor. 2-wire DC (5-60V), Normally Closed (NC) output, 2000Hz frequency. IP67-rated PBT housing for tight industrial spaces.
Compact 3mm flush proximity sensor. 2-wire DC (5-60V), Normally Closed (NC) output, 2000Hz frequency. IP67-rated PBT housing for tight industrial spaces.
| Parameter | Value |
|---|---|
| Operating Voltage | 5 - 60 V DC |
| Switching Frequency | 0 - 2000 Hz |
| Rated Operating Distance | 3 mm |
| Output Type | 2-Wire, Normally Closed (NC) |
| Mounting | Flush |
| Degree of Protection | IP67 |
| Housing Material | PBT |
| Voltage Drop | ≤ 4 V |
| Operating Current | 4 - 100 mA |
| Connection Type | Cable PVC, 130 mm |
| Ambient Temperature | -25 to 70 °C |
| Physical Weight (kg) | 0.01 |
| Dimensions L x W x H (cm) | 1.6 x 2.78 x 1.02 |
Used within chemical and process control plants to physically verify that quarter-turn or linear valves are completely closed, interfacing seamlessly with PLC inputs.
Provides highly reliable confirmation of mechanical valve positions in confined actuator housings where standard cylindrical sensors cannot physically fit.
Monitors the presence and proper seating of tool holders within the spindle of automated CNC milling machines during rapid automated tool changes.
Prevents catastrophic machining errors by instantly detecting incorrectly seated tools, capable of tracking high-speed metallic movements without missing counts.
Detects the physical arrival and presence of metallic product carriers or pallets at precision end-stops along automated manufacturing transfer lines.
Provides non-contact, wear-free end-of-travel detection that is immune to factory voltage spikes and mechanical impacts from industrial environments.
