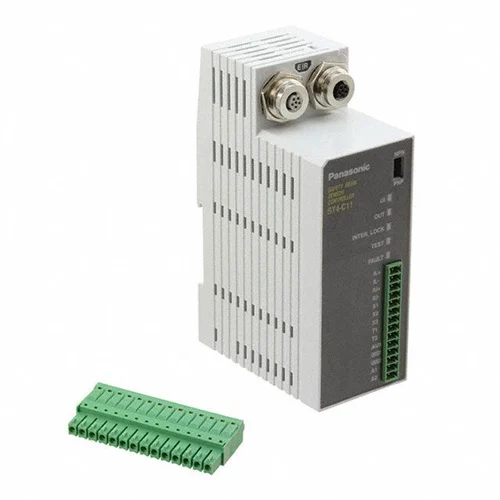

Name: Panasonic ST4-C11 Safety Beam Sensor Controller - INOSAKI
SKU: Pananonic-ST4-C11
Price: 510.72 USD
Availability: InStock

Technical Overview

Compact Type 4 safety beam sensor controller with 24VDC supply, dual NPN/PNP outputs, IP40, and ≤25ms response time. Category 4 / SIL3 compliant.

Key Features

Controller for Panasonic ST4 series safety beam sensor system.
Supports productivity and simplifies safety circuit design.
Dual PNP or dual NPN output for versatile operation.
Allows serial connection of up to six sets with interference prevention.
Effective for safety applications in both wide and narrow spaces.
Features multiple operation modes.
LED indication for operation and status.
Easy connector connection and removable terminal blocks.
Compliant with Category 4 / SIL3 safety standards.
DIN Rail mountable.

Technical Specification Matrix

Parameter	Value
Supply Voltage	24 VDC
Output Configuration	NPN/PNP
Digital Outputs	2 x digital outputs (Selectable NPN/PNP open-collector / 24Vdc / 60-200mA) (OSSD1+OSSD2)
IP Rating	IP40
Response Time (ON - auto reset)	9ms / 0.09 s
Response Time (ON - manual reset)	14ms / 0.14 s
Response Time (OFF)	25ms / 0.025 s
Minimum Operating Temperature	-10 °C
Maximum Operating Temperature	+55 °C
Ambient Humidity	30 to 85 % RH
Storage Ambient Humidity	30 to 95 % RH
Housing Material	ABS
Voltage Withstandability	1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance	20 MΩ or more with 500V DC megger between all supply terminals connected together and enclosure
Vibration Resistance	10 to 55 Hz frequency, 0.75 mm double amplitude or maximum acceleration 90 m/s² in X, Y and Z directions for two hours each
Shock Resistance	300 m/s² acceleration in X, Y and Z directions three times each
Safety Category	Type 4 / SIL3
Physical Weight (kg)	0
Dimensions L x W x H (cm)	0 x 0 x 0

Industrial Applications

1. Machine Guarding for Industrial Presses

The ST4-C11, when integrated with ST4 series safety beams, serves as a critical safety light curtain system for industrial presses and hazardous machinery.

Problem Solved

Ensures operator safety by rapidly halting machine operation (response time ≤25ms) upon intrusion into the protected area, preventing severe injuries. Its Category 4 / SIL3 compliance meets stringent safety requirements for high-risk equipment.

Safety light curtainmachine guardingCategory 4SIL324VDCfast response timeOSSD outputs

2. Access Control in Robotic Workcells

This controller provides robust access control for robotic workcells, detecting personnel entry into hazardous zones by integrating with ST4 safety sensors.

Problem Solved

Prevents accidental or unauthorized access to active robotic areas, triggering an immediate safe stop of robot movement to protect personnel. The IP40 rating ensures suitability for typical industrial indoor environments.

Robotic safetyaccess controlsafety sensorIP40digital outputs24VDCindustrial automation

3. Perimeter Protection for Automated Material Handling Systems

The ST4-C11 and its associated ST4 safety beams can establish a virtual safety perimeter around automated guided vehicle (AGV) paths or conveyor systems in warehouses.

Problem Solved

Safeguards personnel and equipment by detecting obstructions or human presence, initiating a controlled stop of AGVs or conveyors to prevent collisions and accidents in dynamic material handling environments. The ability to serially connect multiple sensors is ideal for extensive perimeters.

AGV safetyconveyor safetyperimeter guardingserial connection24VDCsafety controllerinterference prevention
