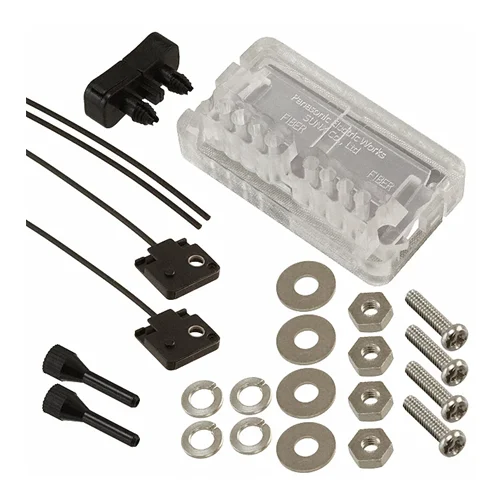

Compact flat-type thru-beam fiber optic sensor head with W2xH10xD10mm dimensions, 0.5mm beam, IP67 rating, and -40°C to +60°C operating temperature.
Compact flat-type thru-beam fiber optic sensor head with W2xH10xD10mm dimensions, 0.5mm beam, IP67 rating, and -40°C to +60°C operating temperature.
| Parameter | Value |
|---|---|
| Part Number | FT-Z20HBW |
| Sensing Mode | Thru-beam type |
| Fiber Type | Flat type, with boss |
| Fiber Head Dimensions (W x H x D) | 2 x 10 x 10 mm |
| Beam Direction | Top sensing / Fiber bending type |
| Beam Axis Diameter | 0.5 mm |
| Fiber Cable Length | 1 m |
| Allowable Bending Radius | R1 mm |
| Free-cut | Available |
| Protection Rating | IP67 (IEC) |
| Operating Temperature Range | -40°C to +60°C |
| Standard Sensing Range (with FX-500 series) | 260 mm |
| Physical Weight (kg) | 0 |
| Dimensions L x W x H (cm) | 1 x 0.2 x 1 |
The compact dimensions (W2 x H10 x D10 mm) and small beam axis diameter (0.5 mm) allow this sensor to accurately detect tiny components or features in extremely tight areas of machinery where larger sensors cannot be installed.
Reliable presence detection of miniature parts in space-constrained automation equipment.
With an IP67 protection rating and a broad operating temperature range of -40°C to +60°C, the FT-Z20HBW can consistently perform in challenging industrial conditions, such as those involving dust, moisture, or significant temperature fluctuations, to ensure proper object placement.
Maintaining reliable sensing performance in demanding industrial environments subject to extreme temperatures or ingress of dust and water.
The thru-beam sensing mode, combined with a standard sensing range of 260 mm and a fiber cable with an R1 mm bending radius, makes this sensor ideal for verifying the exact position and alignment of components during automated assembly processes, ensuring quality control and smooth operation.
Achieving accurate and repeatable positioning verification for automated assembly tasks, even with complex machinery layouts.
