1. High-Speed Small Part Detection on Conveyor Belts

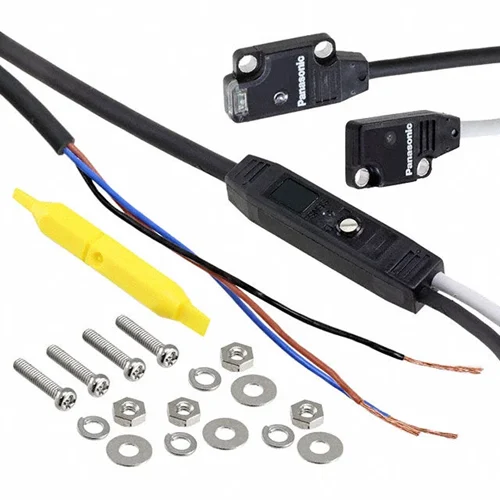

The EX-17's 500 mm sensing distance and rapid 0.5 ms response time enable precise and quick detection of small objects (min Ø2mm) moving at high speeds on industrial conveyor systems.
Problem SolvedEnsures accurate counting, presence detection, and flow monitoring of rapidly moving small components without missed detections or false triggers.
High-speed detectionSmall object detectionConveyor automation0.5 ms response time500 mm sensing range
2. Packaging Line Synchronization in Harsh Environments
With an IP67 rating and 500 mm sensing range, the sensor reliably detects packages for synchronization on bottling or food packaging lines, even in washdown areas or environments prone to splashes.
Problem SolvedProvides accurate timing for automated processes like sealing, filling, or labeling in wet or dusty conditions, maintaining operational integrity and preventing errors.
IP67 protectionPackaging automationWet environmentLine synchronizationThrough-beam sensing
3. Compact Door/Gate Safety Interlock for Industrial Machinery
The ultra-slim 3.5 mm thick design and through-beam method allow for unobtrusive integration into machine frames, providing reliable open/close detection for safety interlocks on automated doors or gates.
Problem SolvedEnhances machine safety by accurately detecting the position of protective barriers, preventing operation when guards are open, and fitting into tight-clearance areas.
Ultra-slim designSafety interlockMachine guardingCompact integrationDoor position sensing
