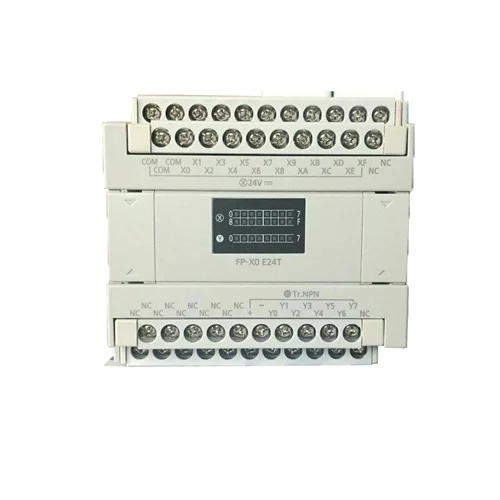

FP-X0 series I/O expansion unit with 24 points (16 DC inputs, 8 transistor outputs) for scalable, high-speed industrial PLC automation.
FP-X0 series I/O expansion unit with 24 points (16 DC inputs, 8 transistor outputs) for scalable, high-speed industrial PLC automation.
| Parameter | Value |
|---|---|
| Series | FP-X0 |
| Total I/O Points | 24 |
| Input Specifications | 16 points, 24V DC (± common) |
| Output Specifications | 8 points, Transistor |
| Output Voltage Range | 5 to 24 V DC |
| Output Current Rating | 0.5 A per point |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Operating Humidity | 10 to 95% RH (no dew condensation allowed) |
| Vibration Resistance | 10 to 150 Hz, fixed acceleration of 9.8 m/s² |
| Physical Weight (kg) | 0.4 |
| Dimensions L x W x H (cm) | 13 x 7.9 x 9 |
Expanding the physical digital inputs and transistor outputs on a packaging line to control conveyor solenoids, track optical sensors, and actuate pneumatic cylinders.
Solves I/O limitations on base FP-X0 controllers without upgrading to a larger, more expensive CPU unit.
Providing additional high-speed transistor outputs to interface with servo drives and limit switches on a two-axis material stacker crane.
Enables complex position monitoring and axis limit sensing by expanding input capacity adjacent to high-speed pulse outputs.
Using the digital inputs to monitor temperature threshold alarms and transistor outputs to cycle heating element relays in thermal processing chambers.
Allows low-latency relay triggering and status signaling without inducing electrical noise or occupying primary CPU terminal blocks.
