1. Automated Conveyor System Expansion

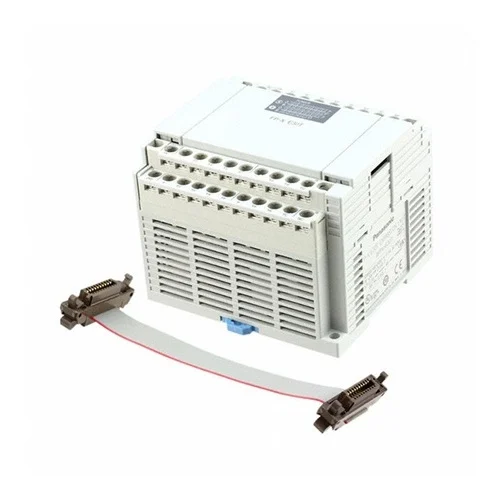

Utilizing the 16 digital inputs for various proximity and limit switch sensors, and 14 NPN transistor outputs to control conveyor motor contactors and pneumatic diverters, the AFPX-E30T extends the I/O capabilities of an existing FP-X/FP-XH PLC in material handling systems.
Problem SolvedProvides additional digital I/O points for complex automation sequences and monitoring in conveyor systems, integrating seamlessly with the PLC's 100-240VAC power supply and compact DIN rail mounting.
Digital InputNPN OutputConveyor ControlMaterial HandlingPLC ExpansionProximity SensorsSolenoid ValvesDIN Rail Mount
2. Small Packaging Machine Control
This expansion unit is ideal for small packaging machinery, augmenting the base PLC with 16 inputs for package presence and alignment sensors, and 14 NPN transistor outputs for controlling grippers, sealing mechanisms, or small indicator lights. Its compact form factor (9x6x9 cm) allows for integration into tight machine enclosures.
Problem SolvedAddresses the need for flexible and increased discrete I/O for intricate packaging processes, enabling precise control and feedback without needing a larger, more expensive PLC. The 24VDC NPN outputs are suitable for various low-current loads common in packaging equipment.
Packaging MachineryDigital I/OTransistor OutputGripper ControlSensor FeedbackPLCDIN Rail MountCompact Size
3. Industrial Process Monitoring and Actuation
The AFPX-E30T expands a central PLC's capacity to monitor critical process conditions using its 16 digital inputs (e.g., from level switches, pressure sensors with discrete outputs, emergency stops) and control up to 14 discrete actuators like pump start/stop relays or valve open/close solenoids in distributed industrial process environments.
Problem SolvedOffers a cost-effective solution for adding more discrete I/O points for distributed process monitoring and basic control tasks, leveraging the 100-240VAC power compatibility with standard industrial grids and providing robust NPN switching for various field devices.
Process ControlDiscrete I/OField DevicesPLC IntegrationAutomationNPN SwitchingIndustrial MonitoringSolenoid Control
