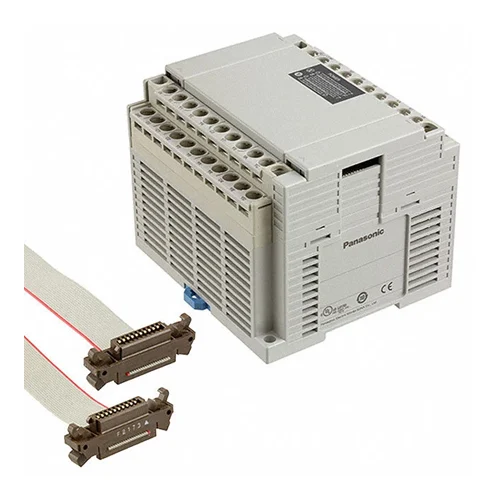

Name: Panasonic AFPX-E30R Expansion IO Unit - INOSAKI
SKU: Pananonic-AFPX-E30R
Price: 205.20 USD
Availability: InStock

Technical Overview

Provides robust 16-point 24V DC input and 14-point 2A relay output for FP-XH programmable controllers. Enables flexible, high-density I/O expansion.

Key Features

16-point 24 V DC input
14-point relay output with 2 A current rating per point
Compatible with Panasonic FP-XH series programmable controllers
Enhances system I/O capabilities for diverse industrial applications
Supports the high-speed operation environment of the FP-XH series
Integrates into large capacity program memory systems (FP-XH series feature)
Facilitates multi-axis positioning control when used with appropriate FP-XH control units

Technical Specification Matrix

Parameter	Value
Product Type	Expansion I/O Unit
Power Supply	100 to 240 V AC
Input Points	16-point
Input Voltage	24 V DC
Output Points	14-point
Output Type	Relay
Output Current Rating	2 A per point
Physical Weight (kg)	0
Dimensions L x W x H (cm)	0 x 0 x 0

Industrial Applications

1. Conveyor System Control and Automation

The FP-X E30R Expansion I/O unit can be deployed in automated conveyor systems to manage various operational aspects. Its 16-point 24V DC inputs are ideal for connecting multiple proximity, photoelectric, and limit sensors to detect product presence, position, and jams. The 14-point 2A relay outputs can control conveyor motor starters, sorting gates, diverting mechanisms, and emergency stops, ensuring smooth and efficient material flow.

Problem Solved

Provides the necessary I/O density and control capability to precisely monitor and actuate multiple points in a complex conveyor system, reducing manual intervention and preventing operational bottlenecks.

Conveyor automationMaterial handlingProximity sensorsPhotoelectric sensorsLimit switchesRelay logicDiscrete I/O24V DC input

2. Packaging Machinery Actuation and Monitoring

Integrating the FP-X E30R into packaging machinery allows for precise control and feedback. The 24V DC inputs can gather data from product detection sensors, film tension sensors, and safety interlocks. Concurrently, the 2A relay outputs are perfectly suited for activating pneumatic cylinders for gripping or pushing, controlling solenoid valves for sealing or dispensing, and engaging motor contactors for indexing or cutting mechanisms, enabling synchronized high-speed operations.

Problem Solved

Enables robust and synchronized control of numerous sensors and actuators within packaging lines, leading to higher throughput, improved accuracy, and enhanced machine reliability.

Packaging automationSolenoid valvesPneumatic controlProduct detectionSensor integrationDiscrete I/OHigh-speed packaging

3. Industrial Fluid Management and Pumping Stations

For applications involving fluid control, the FP-X E30R unit offers robust I/O for managing pumps and valves. Its 16-point 24V DC inputs can monitor multiple level switches, flow sensors, and pressure transducers in tanks or pipelines. The 14-point 2A relay outputs can directly control the on/off states of various pumps, motor-operated valves, and mixing agitators, facilitating automated filling, draining, and transfer operations while ensuring safety.

Problem Solved

Automates the intricate processes of fluid management, preventing overflows, maintaining optimal levels, and ensuring precise control over pump and valve operations in industrial liquid handling systems.

Fluid controlPump automationValve actuationLevel sensingFlow monitoringProcess controlDiscrete I/OMotor control
