1. Expanding Control for Small to Medium Industrial Machines

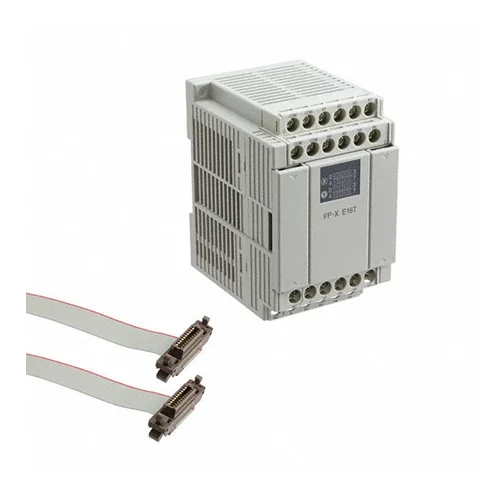

The AFPX-E16T, with its 8 digital inputs and 8 NPN transistor outputs, provides an economical way to extend the I/O capacity of existing Panasonic FP-X series PLCs in industrial machines. Its 24VDC operation and 0.5A NPN transistor outputs are ideal for controlling standard industrial sensors, actuators, and pilot lights.
Problem SolvedSolves the problem of needing additional digital I/O points for new sensors or actuators without replacing the entire PLC, reducing cost and complexity in machine upgrades or modifications.
PLC expansiondigital I/Omachine automationNPN transistor output24VDC controlindustrial sensors
2. Automated Conveyor System Integration
In automated conveyor systems, the AFPX-E16T can be mounted on a DIN rail to interface proximity sensors, limit switches (inputs), and control small motor starters, solenoid valves for diversion gates, or indicator lamps (outputs). Its compact size and robust screw connections are suitable for deployment in control cabinets along conveyor lines, operating reliably within 0-55°C.
Problem SolvedEnables precise control and monitoring of conveyor belt movement, product detection, and sorting mechanisms by efficiently integrating various digital inputs and outputs with a central PLC.
Conveyor automationdigital inputdigital outputNPN outputDIN rail mountsensor integrationsolenoid control24VDC
3. Auxiliary I/O for Process Monitoring in Controlled Environments
For process monitoring in environments like HVAC systems or building automation, this unit can read states from contact sensors (e.g., door open/close, fan status) and control low-power devices like indicator LEDs or small relays. Its 24VDC rating and operational temperature range make it suitable for installation within industrial control panels in temperature-controlled facilities.
Problem SolvedProvides additional digital I/O for localized monitoring and control tasks, offloading the main PLC and allowing for modular expansion as monitoring needs evolve, while maintaining reliable operation in standard industrial temperatures.
Process controlbuilding automationHVAC monitoringdigital inputNPN output24VDCmodular I/Ocontrol panel
