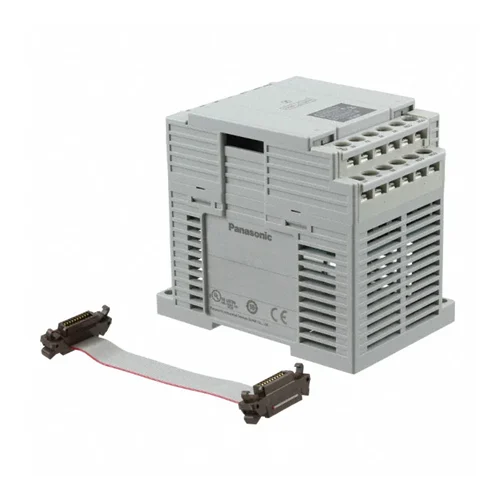

Name: Panasonic AFPX-E14YR Relay Output Expansion Unit - INOSAKI
SKU: Pananonic-AFPX-E14YR
Price: 131.76 USD
Availability: InStock

Technical Overview

Provides 14-point, 2A relay outputs for expanding Panasonic FP-X Series PLC systems, offering robust, isolated switching for discrete industrial loads.

Key Features

14-point relay output capability.
Individual relay output current of 2 A.
Designed as an expansion unit for Panasonic FP-X Series PLCs.
Power supplied directly from the left-side control unit.
Compact terminal block type design for efficient space utilization.
Supports expansion with up to 8 units in the FP-XH series.
High vibration resistance: 5 to 8.4 Hz, 3.5 mm single amplitude; 8.4 to 150 Hz, Acceleration 9.8 m/s².
High shock resistance: 147 m/s², 4 times each in X, Y and Z directions.
Wide operating ambient temperature range of 0 to +55 °C.

Technical Specification Matrix

Parameter	Value
Output Points	14 points
Output Type	Relay output
Output Current	2 A per point
Power Supply	Supplied from the left-side unit
Operating Ambient Temperature	0 to +55 °C (32 to +131 °F)
Storage Ambient Temperature	-40 to +70 °C (-40 to +158 °F)
Operating Ambient Humidity	10 to 95% RH (at +25 °C, non-condensing)
Breakdown Voltage (Relay Output, Between output terminal and earth terminal)	1,500 V AC for 1 minute (AC power supply), 500 V AC for 1 minute (DC power supply)
Isolation Resistance (Relay Output, Between output terminal and earth terminal)	100 MΩ or more (500 V DC)
Vibration Resistance	5 to 8.4 Hz, 3.5 mm single amplitude; 8.4 to 150 Hz, Acceleration 9.8 m/s² (10 min. each in X, Y, Z directions)
Shock Resistance	147 m/s², 4 times each in X, Y, Z directions
Noise Resistance	1,000 V [P-P] with pulse widths of 50 ns and 1 µs (Power supply terminal)
Operating Condition	No corrosive gas and no excessive dust
Applicable Standard for EC Directives	EMC directive: EN 61131-2
Over-Voltage Category	Category II
Level of Contamination	2
Physical Weight (kg)	0
Dimensions L x W x H (cm)	0 x 0 x 0

Industrial Applications

1. Industrial Conveyor Belt Control

In automated manufacturing, precise control of conveyor belts is crucial for material handling and product flow. This unit can control various actuators like motors or solenoids involved in conveyor operations.

Problem Solved

Ensures reliable on/off control for multiple sections or components of a conveyor system, facilitating sequential operation and interlocks without requiring complex transistor logic for higher power loads.

Conveyor automationmaterial handlingsequential controlrelay outputindustrial automation

2. Packaging Machine Actuation

Modern packaging lines require coordinated operation of many pneumatic and electric actuators for tasks such as sealing, cutting, sorting, and labeling.

Problem Solved

Provides robust, isolated switching capabilities for various packaging machine solenoids, small motors, and indicator lights, simplifying wiring and reducing the need for external relays due to its 2A relay outputs.

Packaging machinerypneumatic controlsolenoid activationdiscrete outputfactory automation

3. Building Automation System for HVAC or Lighting

In building management, controlling heating, ventilation, and air conditioning (HVAC) systems or lighting circuits often involves switching various loads.

Problem Solved

Enables a PLC-based building automation system to directly switch medium-power HVAC components (e.g., small fans, damper actuators) or lighting zones, leveraging its 14 relay outputs to manage multiple discrete control points from a central controller.

Building automationHVAC controllighting controldiscrete switchingenergy management
