1. Automated Production Line Data Acquisition

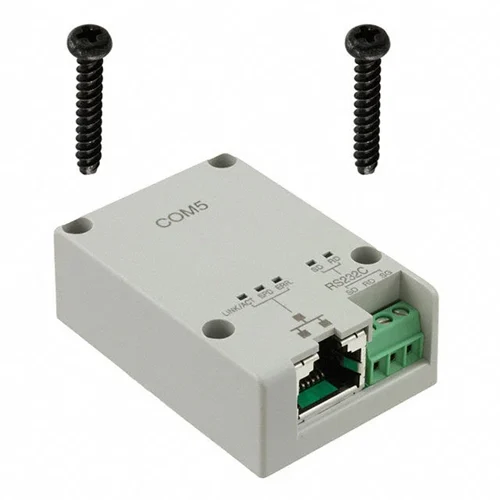

In a modern manufacturing facility, the FP-XH programmable controller, enhanced with the AFPX-COM5 communication cassette, can be used to collect real-time data from various sensors and actuators on a production line. The integrated Ethernet channel allows the PLC to connect to a central SCADA system or MES for data logging, process monitoring, and historical analysis. The RS-232C port can interface with legacy serial devices, such as barcode readers or weighing scales, ensuring comprehensive data capture.
Problem SolvedCentralized data acquisition and integration of diverse communication standards (Ethernet and serial) in an automated production environment, overcoming limitations of basic PLC communication ports.
SCADAMESIndustrial EthernetRS-232CData LoggingProcess MonitoringReal-time Data
2. Remote Monitoring and Control of Distributed Industrial Equipment
For managing industrial equipment spread across different locations, such as water treatment plants or remote pumping stations, the AFPX-COM5 cassette provides the necessary communication backbone for an FP-XH PLC. The Ethernet channel enables connection to an IP-based network for remote access, allowing operators to monitor system status, adjust parameters, and perform diagnostic checks from a control room. This setup reduces the need for on-site visits and improves operational efficiency.
Problem SolvedEstablishing reliable remote monitoring and control over IP networks for geographically dispersed industrial assets, enhancing responsiveness and reducing operational costs.
Remote I/OIP NetworkingSCADAPredictive MaintenanceDistributed ControlTelemetry
3. Machine-to-Machine (M2M) Communication in Material Handling Systems
In complex material handling systems, such as automated guided vehicles (AGVs) or robotic cells, the FP-XH with AFPX-COM5 facilitates seamless machine-to-machine communication. The high-speed Ethernet connection enables rapid data exchange between multiple PLCs controlling different segments of the system, ensuring coordinated movement and process synchronization. The RS-232C port can be utilized for specialized device communication, like programming interfaces for robotic arms or interfacing with vision systems.
Problem SolvedAchieving high-speed, synchronized communication between multiple automated machines and control systems within a material handling or assembly line, crucial for complex operations.
M2M CommunicationIndustrial RoboticsAGV ControlReal-time ControlProcess SynchronizationData Exchange
