1. Industrial Network Integration for SCADA Systems
Integrating Panasonic FP-XH series PLCs into existing or new industrial networks for data exchange with SCADA (Supervisory Control and Data Acquisition) or HMI (Human-Machine Interface) systems. The insulated RS-485 channel provides robust, long-distance communication essential for reliable data acquisition in noisy industrial environments.
Problem SolvedEnables robust and reliable data communication between FP-XH PLCs and supervisory control systems over standard serial protocols (RS-485/RS-232C), overcoming electrical noise challenges with built-in insulation.
SCADAHMIRS-485RS-232CIndustrial CommunicationData ExchangeNoise Immunity
2. Automated Machine-to-Machine (M2M) Communication
Connecting the FP-XH PLC to various peripheral devices, smart sensors, or other control units on a manufacturing line. The RS-232C channel can be used for local, point-to-point device control, while RS-485 supports multi-drop connections for broader M2M data logging, recipe downloads, or status monitoring across an automated cell.
Problem SolvedEstablishes flexible and reliable serial communication links between a central PLC and diverse machine components, improving automation efficiency and data transparency through M2M data transfer.
M2MSerial CommunicationData LoggingRecipe ManagementPeripheral ControlAutomation
3. Remote Field Device Control and Monitoring

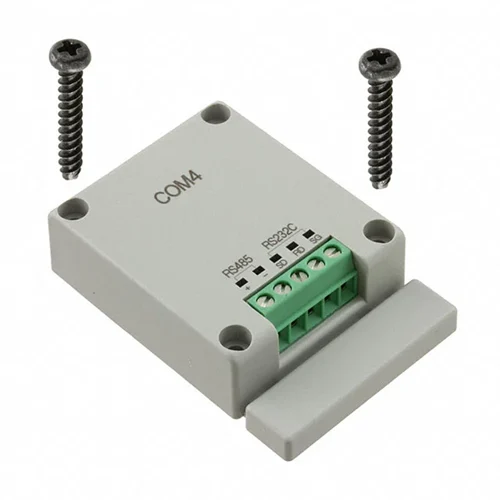

Utilizing the RS-485 channel of the COM4 cassette to link the FP-XH PLC with multiple remote sensors, actuators, or smart instruments that are Modbus-RTU compatible. This allows for centralized control and data acquisition from distributed field devices, enhancing system scalability and reducing wiring complexity.
Problem SolvedProvides a cost-effective and robust solution for connecting and controlling multiple remote Modbus-RTU compatible devices using a single communication module, enabling efficient distributed control and monitoring.
Remote I/OModbus-RTUDistributed ControlSensor IntegrationActuator ControlData Acquisition
