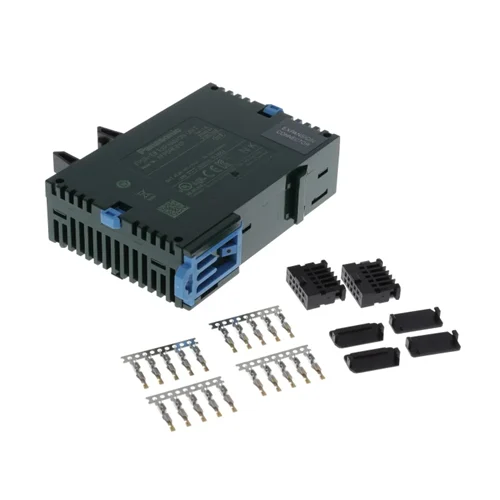

Name: Panasonic AFP0RE8YP Expansion Unit 8-Output - INOSAKI
SKU: Pananonic-AFP0RE8YP
Price: 143.28 USD
Availability: InStock

Technical Overview

8-channel, 24VDC open collector output module for FP0R PLCs, offering 0.3A/point switching and 1ms response time, DIN rail mountable.

Key Features

Expansion module for Panasonic FP0R programmable logic controllers [1].
Extends base controller with additional digital I/O functions [1].
8 digital output points [7].
Open collector output type [3].
Rated load voltage of 24 V DC [3].
Max. load current of 0.3 A per point [3].
Fast response time of 1 ms or less (OFF→ON and ON→OFF) [3].
MIL connector for wiring termination [4, 8].
DIN rail mountable [5].
RoHS compliant [2, 5].

Technical Specification Matrix

Parameter	Value
Output Type	Open collector
Number of Outputs	8
Rated Load Voltage	24 V DC
Load Voltage Allowable Range	21.6 to 26.4 V DC
Max. Load Current per Point	0.3 A
Max. Load Current per Common Terminal	14 A
OFF State Leakage Current	1 μA or less
ON State Voltage Drop	0.2 V DC or less
Response Time (OFF→ON)	1 ms or less
Response Time (ON→OFF)	1 ms or less
External Power Supply Voltage	21.6 to 26.4 V DC
External Power Supply Current	35 mA or less
Surge Absorber	Zener diode
Output Points per Common	8 points / common
Insulation Method	Photocoupler
Operating Temperature	0 to 55°C
Termination Style	MIL Connector
Mounting Type	DIN Rail
Physical Weight (kg)	0.12
Dimensions L x W x H (cm)	9 x 6 x 2.5

Industrial Applications

1. Automated Conveyor System Control

Precisely controlling the on/off state of multiple small 24V DC conveyor motors, solenoids for diverting packages, or indicator lights in an automated packaging or sorting line.

Problem Solved

Provides reliable digital switching for low-power 24VDC loads in material handling systems, ensuring accurate and timely actuation of conveyor elements and signaling devices.

Digital Output24VDC ControlSolenoid ActuationIndicator LightsConveyor Motor ControlFast Response Time

2. Industrial Machine Status Monitoring & Actuation

Providing status feedback (e.g., fault indicators, operation mode lights) and actuating low-power components (e.g., small relays, pneumatic valve coils) within a machine tool or assembly equipment.

Problem Solved

Enables robust and compact digital output expansion for machine control, allowing for detailed status indication and precise control over various auxiliary 24VDC components.

Machine ControlStatus IndicationRelay DriveSolenoid Valve ControlIndustrial AutomationDigital Switching

3. Building Automation for Small-Scale Control

Controlling individual 24VDC dampers in an HVAC system, opening/closing access control gates via solenoid locks, or switching lighting zones in a small commercial building.

Problem Solved

Offers a centralized and expandable solution for discrete 24VDC control in building automation, managing multiple low-voltage devices efficiently within a standard industrial temperature range.

HVAC ControlDamper ActuationAccess ControlLighting Automation24VDCDiscrete Output
