Name: Panasonic AFP0RE16P Digital IO Expansion Unit - INOSAKI
SKU: Pananonic-AFP0RE16P
Price: 145.68 USD
Availability: InStock

Technical Overview

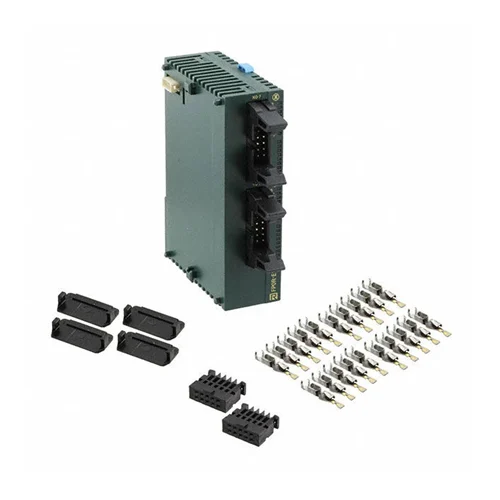

Compact 8DI/8DO (PNP) expansion unit for Panasonic FP0R PLCs, featuring 24Vdc inputs, 300mA transistor outputs, and MIL connector for DIN rail mounting.

Key Features

8 digital inputs (24Vdc, Sink/Source compatible).
8 PNP transistor outputs (24Vdc, 300mA per point).
MIL connector for robust and reliable wiring termination.
DIN rail mounting for easy integration into industrial control panels.
Compatible with Panasonic FP0R, FP-Sigma, and FP-X series PLCs.
Ultra-compact design, ideal for applications with limited installation space.
Operating temperature range of 0 to 55°C (32 to 131 F).

Technical Specification Matrix

Parameter	Value
Input Type	Digital
Number of Digital Inputs	8
Input Voltage	24 V DC (21.6 to 26.4 V DC).
Input Current	4.7 mA approx. (at 24 V DC).
Input Impedance	5.1 kΩ approx.
Output Type	Digital, PNP Transistor.
Number of Digital Outputs	8
Output Current	0.3 A (300mA) per point.
Termination Type	MIL Connector.
Mounting Type	DIN Rail.
Operating Temperature	0 to 55 °C (32 to 131 F).
Physical Weight (kg)	0
Dimensions L x W x H (cm)	6 x 2.5 x 9

Industrial Applications

1. Small Machine Control for Packaging or Assembly

Integrating this unit into compact packaging or small assembly machines, such as label applicators or pick-and-place systems, to manage discrete I/O.

Problem Solved

Provides essential digital I/O for controlling sensors (e.g., proximity, photo-electric for part detection) and actuators (e.g., small solenoids, indicator lights) in space-constrained machinery. The compact size (2.5 cm width) allows it to fit into tight control cabinets, while the 8 inputs and 8 PNP 300mA outputs are suitable for precise, synchronized operations of small loads.

Digital I/O24Vdc controlPNP outputCompact automationDiscrete controlMIL connectorDIN rail mount

2. Distributed I/O for Industrial Robotics Cells

Utilizing the expansion unit as a localized I/O point within a robotic work cell, managing peripherals directly around a robot arm or within an end-effector.

Problem Solved

Robotic cells benefit from distributed I/O close to the action to minimize wiring and reduce noise. The AFP0RE16P's compact form factor and robust MIL connector make it suitable for mounting on or near robotic fixtures. Its 24Vdc digital inputs can read signals from robot-mounted sensors (e.g., part gripping confirmation), and the 300mA PNP outputs can control small tooling elements or indicators, simplifying wiring and offloading I/O from the main robot controller.

Distributed I/ORobotic automation24Vdc sensor integrationPNP output controlCompact footprintMIL connector

3. Process Monitoring and Control in HVAC or Building Automation Sub-systems

Employing this unit within local control panels for HVAC zones or small building automation sub-systems, such as fume hoods, exhaust systems, or environmental chambers.

Problem Solved

For localized control functions requiring a limited number of digital inputs (e.g., damper position feedback, filter status, door interlocks) and outputs (e.g., fan control, valve activation, alarm indicators), this compact I/O unit offers a cost-effective solution. Its 24Vdc compatibility is standard for many industrial sensors and actuators in building management, and DIN rail mounting simplifies installation within existing control cabinets.

Building automationHVAC controlDigital sensingDiscrete actuation24VdcPNP switchingDIN rail installationCompact controller expansion
