1m pre-assembled 40-pin PLC cable. Connects Fujitsu to MIL interfaces, supporting up to 40 signals with robust shielding and 1A current rating.

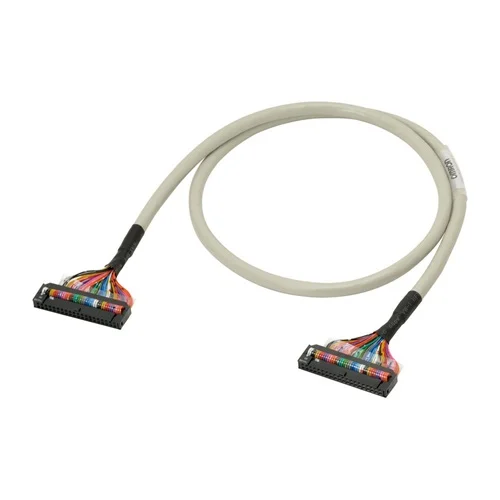

The Omron XW2Z-100B is a 1-meter, pre-assembled mating cable designed for interfacing programmable logic controller (PLC) I/O modules with connector-terminal block conversion units. Engineered for 32- and 64-point I/O systems, the cable features a 40-pin Fujitsu connector on one end and a 40-pin MIL connector on the other. It is built with 28 AWG cores, offers a 1A rated current, and operates safely between 0°C to 80°C with 500V dielectric strength. This automation shielded cable facilitates 'one-touch' integration to dramatically reduce wiring time and complexity in industrial control panels.
| Parameter | Value |
|---|---|
| Cable Length | 1 m (3.28 ft) |
| Connectors | 1 x 40-pin Fujitsu to 1 x 40-pin MIL |
| Number of Cores | 40 (28 AWG) |
| Rated Current | 1 A |
| Rated Voltage | 24 VDC / 125 VAC |
| Contact Resistance | 20 mΩ max |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric Strength | 500 V for 1 minute |
| Operating Temperature | 0°C to +80°C |
| Housing Material | Polyester resin |
Utilized to connect 32- or 64-point PLC I/O modules directly to terminal blocks inside dense control cabinets.
Eliminates tedious and error-prone point-to-point manual wiring by providing a reliable, pre-assembled 40-pin connection, significantly reducing panel build time.
Bridges multi-channel sensor arrays and actuators on a CNC or automated machine tool to the central logic controller.
Provides secure and shielded transmission for up to 40 signals (24 VDC, 1A) over a 1-meter span, mitigating electromagnetic interference (EMI) in high-noise factory environments.
Links a central robot controller's logic board to a peripheral relay block to drive external mechanisms and safety interlocks.
Maintains high signal integrity with 20 mΩ max contact resistance and robust 500V dielectric strength, ensuring fail-safe operations and long-term durability in industrial robotics.
