USD 25.76
M12 4-pin straight female sensor cable with a 5m PUR jacket. Features an IP67 rating, 250V/4A capacity, and gold-plated contacts for reliable industrial connectivity.

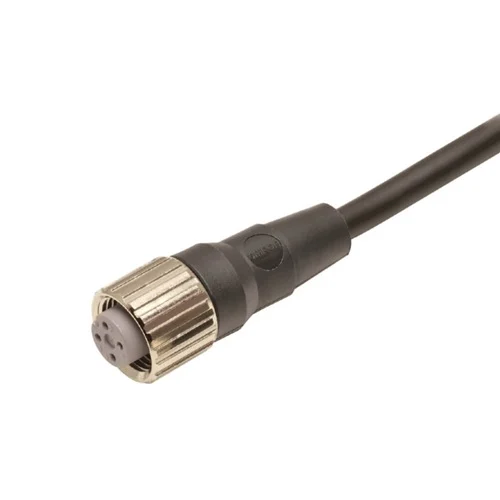

The Omron XS2F-M12PUR4S5M is an industrial-grade, 5-meter single-ended sensor cordset designed for reliable automation connectivity. It features a 4-pole, A-coded M12 straight female socket on one end and an unterminated flying lead on the other. Manufactured with a black PUR (polyurethane) cable jacket, it is inherently oil-resistant, halogen-free, and fire-retardant (94V-0). Meeting strict IP67 environmental protection standards, this robust cable ensures secure power and signal transmission in demanding factory environments, robotics, and machine building operations.
| Parameter | Value |
|---|---|
| Connector 1 | M12 Straight Socket (Female), 4-Pin, A-Coded [1.1] |
| Connector 2 | Open End (Unterminated) |
| Cable Length | 5 meters |
| Cable Material | PUR (Polyurethane), Black |
| Wire Gauge | 22 AWG |
| Voltage Rating | 250 V |
| IP Rating | IP67 |
| Fire Rating | UL 94V-0 |
| Contact Resistance | 40 mΩ max |
The robust PUR cable jacket provides excellent resistance to cutting oils and coolants typically found in CNC machining centers, while the IP67 rating protects the M12 connection points from high-pressure fluid sprays during the machining process.
Prevents sensor signal failure caused by cable jacket degradation from prolonged exposure to synthetic and petroleum-based metalworking fluids.
The 5-meter halogen-free polyurethane (PUR) cable is highly flexible and resilient to mechanical abrasion, making it well-suited for routing along dynamic multi-axis robotic arms connecting proximity and photoelectric sensors.
Solves premature cable wear and conductor breakage in high-flexing, continuous-motion automation equipment while maintaining a secure 4-pin power and signal link.
Utilizing the straight 4-pin M12 connector with an IP67 rating ensures reliable sensor connectivity in factory environments subject to frequent washdowns. The 5-meter length allows connection from remote IO blocks directly into control cabinets.
Eliminates short circuits and erratic IO signals on packaging lines that arise from water ingress during facility cleaning protocols.
