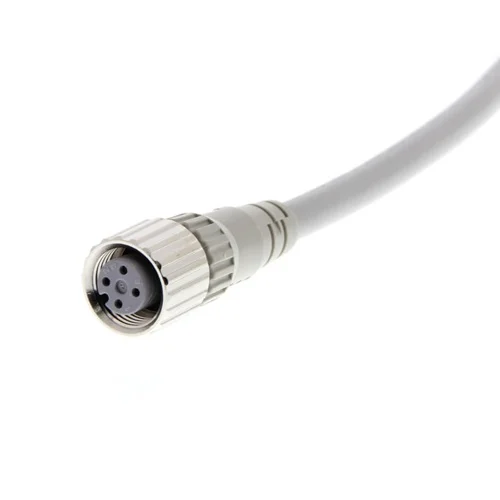

Omron XS2F-D421-J80-F M12 Straight female socket cable with 4 cores, fire-retardant PVC robot cable and 10 m lead.
The Omron XS2F-D421-J80-F is an XS2 M12 sensor I/O connector cable with a straight female socket on one cable end. It has a 4-pole M12 screw connection with 4 connected cable cores and a 10 m fire-retardant PVC robot cable. Use it to provide a pre-terminated connection between compatible M12 sensor equipment and a control or junction point. Verify pin assignment and electrical compatibility for the intended circuit.
M12 straight female socket connector with 4-core fire-retardant PVC robot cable, 10 m.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Series | XS2 |
| Connector type | M12 female socket, one cable end |
| Connector orientation | Straight |
| Connector poles | 4 |
| Connected cable cores | 4 |
| Cable type | Fire-retardant PVC robot cable |
| Cable diameter | 6 mm |
| Cable length | 10 m |
| Degree of protection | IP67 (XS2 connector family) |
| Supply status | Unknown; exact model configuration is listed in Omron data, current supply status was not established. |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See manufacturer dimensional data; no complete overall L × W × H value stated. |
Engineering suggestions require suitability checks for your installation.
Provide a pre-terminated M12 socket lead for compatible field sensors or equipment.
Confirm connector pin assignment and number of wired cores against the connected device.
Replace a compatible sensor lead with a matching connector direction, core count and length.
Select the required cable route and verify connector keying and screw connection.
