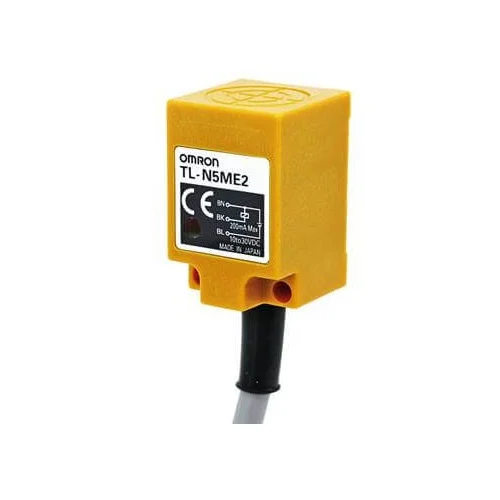

Omron TL-N5ME2 2M is an unshielded 5 mm DC 3-wire NPN NC proximity sensor with a 2 m cable and IP67 protection.
The Omron TL-N5ME2 2M is an unshielded rectangular inductive proximity sensor with a 5 mm nominal sensing distance, DC 3-wire NPN normally-closed output and a 2 m pre-wired cable. It operates from 10 to 30 VDC (rated 12 to 24 VDC) and detects ferrous metal targets; non-ferrous targets reduce sensing range. The sensing head measures 25 x 25.5 x 38.5 mm. Omron lists IEC IP67 protection and its internal oil-proof standard. Omron listed this exact model as selling and standard-stock on 2026-10-05, with stock indicator －.
An unshielded 5 mm inductive proximity sensor with DC 3-wire NPN normally-closed output for ferrous targets.
| Parameter | Value |
|---|---|
| Product type | Rectangular unshielded inductive proximity sensor |
| Sensing distance | 5 mm ±10% |
| Setting distance | 0 to 4 mm |
| Differential distance | 15% max. of sensing distance |
| Standard sensing object | Iron, 30 x 30 x 1 mm |
| Sensing target material | Ferrous metal; sensing distance decreases with non-ferrous metals |
| Response frequency | 500 Hz average |
| Power supply voltage | 12 to 24 VDC, ripple 10% p-p max. |
| Operating voltage range | 10 to 30 VDC |
| Current consumption | 8 mA max. at 12 VDC; 15 mA max. at 24 VDC |
| Control output | NPN, DC 3-wire, normally-closed; 100 mA max. at 12 VDC and 200 mA max. at 24 VDC |
| Residual voltage | 1 V max. at 200 mA load current |
| Indicator | Detection indicator (red) |
| Protection circuit | Reverse polarity protection; surge suppressor |
| Protection rating | IEC IP67; Omron internal oil-proof standard |
| Connection | Pre-wired, 2 m cable |
| Sensing head dimensions | 25 x 25.5 x 38.5 mm |
| Housing material | Heat-resistant ABS resin |
| Accessories | Instruction manual, mounting bracket and Phillips mounting screw |
| Physical Weight (kg) | 0.190 (approx., packaged). |
| Dimensions L x W x H (cm) | See the Omron drawing; manufacturer lists the sensing head size as 25 x 25.5 x 38.5 mm (cable excluded). |
| Supply status | Active; Omron listed TL-N5ME2 2M as selling and standard-stock on 2026-10-05; stock indicator －. |
Engineering suggestions require suitability checks for your installation.
The sensor detects ferrous metal at a nominal 5 mm distance.
Position the ferrous target within the 0 to 4 mm setting distance and verify detection with its actual size and orientation.
The DC 3-wire NPN NC output can signal a machine part entering or leaving the sensing zone.
Connect to a compatible 10 to 30 VDC input and follow Omron clearance recommendations for nearby metal and adjacent sensors.
