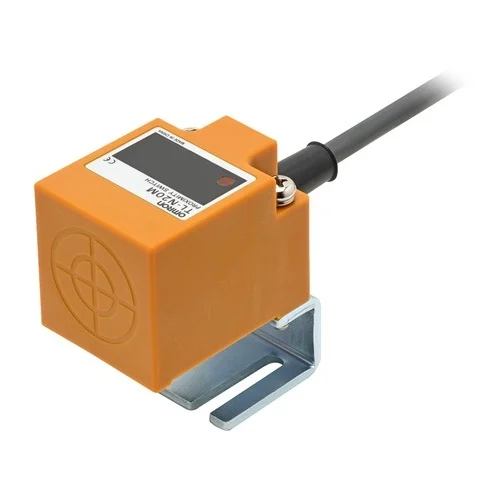

Omron TL-N20MY1 2M is an unshielded 20 mm AC 2-wire NO proximity sensor with a 2 m cable and IP67 protection.
The Omron TL-N20MY1 2M is an unshielded rectangular inductive proximity sensor with a 20 mm nominal sensing distance, AC 2-wire normally-open output and a 2 m pre-wired cable. It uses AC 100 to 220 V, 50/60 Hz power (AC 90 to 250 V operating range) and detects ferrous metal targets; non-ferrous targets reduce sensing range. The sensing head measures 40 x 41 x 53 mm. Omron lists IEC IP67 protection and its internal oil-proof standard. Omron listed this exact model as selling and standard-stock on 2026-07-22, with stock indicator △.
An unshielded 20 mm inductive proximity sensor with AC 2-wire normally-open output for ferrous targets.
| Parameter | Value |
|---|---|
| Product type | Rectangular unshielded inductive proximity sensor |
| Sensing distance | 20 mm ±10% |
| Setting distance | 0 to 16 mm |
| Differential distance | 15% max. of sensing distance |
| Standard sensing object | Iron, 50 x 50 x 1 mm |
| Sensing target material | Ferrous metal; sensing distance decreases with non-ferrous metals |
| Response frequency | 10 Hz average |
| Power supply voltage | AC 100 to 220 V, 50/60 Hz |
| Operating voltage range | AC 90 to 250 V |
| Control output | AC 2-wire, normally-open; 10 to 200 mA switching capacity |
| Residual voltage | See Omron leakage-current and residual-voltage characteristic curves |
| Indicator | Operation indicator (red) |
| Protection circuit | Surge suppressor |
| Protection rating | IEC IP67; Omron internal oil-proof standard |
| Connection | Pre-wired, 2 m cable |
| Sensing head dimensions | 40 x 41 x 53 mm |
| Housing material | Heat-resistant ABS resin |
| Accessories | Instruction manual |
| Physical Weight (kg) | 0.340 (approx., packaged). |
| Dimensions L x W x H (cm) | See the Omron drawing; manufacturer lists the sensing head size as 40 x 41 x 53 mm (cable excluded). |
| Supply status | Active; Omron listed TL-N20MY1 2M as selling and standard-stock on 2026-07-22; stock indicator △. |
Engineering suggestions require suitability checks for your installation.
The sensor detects ferrous metal at a nominal 20 mm distance.
Position the ferrous target within the 0 to 16 mm setting distance and verify detection with its actual size and orientation.
The AC 2-wire NO output can signal a machine part entering or leaving the sensing zone.
Connect to a compatible AC 90 to 250 V circuit and follow Omron clearance recommendations for nearby metal and adjacent sensors.
