1.5 kW EtherCAT servo drive with 400V 3-phase input and integrated SIL3/PLe safety. High-precision control for articulated robotic joints and CNC machining centers requiring sub-micron accuracy.

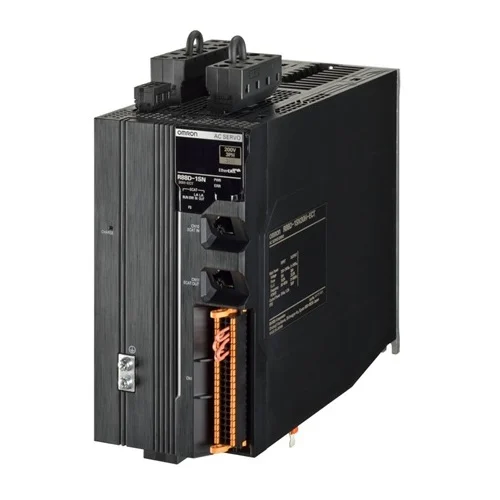

The Omron R88D-1SN15F-ECT is a high-performance Sysmac 1S series AC servo drive tailored for advanced industrial automation and motion control applications. It delivers a 1.5 kW rated output, operates on a 400 VAC three-phase supply, and integrates seamlessly into factory networks via built-in EtherCAT communication. Designed to meet rigorous safety standards, it features integrated Safe Torque Off (STO) up to SIL3/PLe compliance. The drive operates with 23-bit high-resolution encoders for exceptional positioning accuracy and incorporates an embedded relay for direct motor brake control. Additional advantages include optimized loop control for minimal overshoot, direct I/O wiring, and fast screw-less push-in connectors for expedited commissioning and maintenance.
| Parameter | Value |
|---|---|
| Rated Output Power | 1.5 kW (1500 W) |
| Input Supply Voltage | 400 VAC (323-504 VAC), 3-Phase |
| Rated Output Current | 4.7 A |
| Rated Input Current | 4.3 A |
| Network Frequency | 50/60 Hz |
| Control Voltage | 24 VDC |
| Communication Protocol | EtherCAT |
| Degree of Protection | IP20 |
| Height | 246.4 mm |
| Width | 90 mm |
| Depth | 236.05 mm |
| Weight | 3400 g |
| Safety Standards | ISO13849-1 (Cat.3 PLe), IEC61508 (SIL3) |
Utilizing the built-in EtherCAT protocol and precise loop control algorithm, this drive enables high-throughput, tightly synchronized multi-axis motion critical for modern form-fill-seal packaging equipment.
Prevents mechanical misalignment and material waste during rapid packaging cycles by significantly reducing motor settling time and tracking errors.
The integrated Safe Torque Off (STO) and 24 VDC control circuitry allow this drive to be safely integrated into industrial robotic cells. Its 4.7 A rated output provides the necessary torque for demanding articulated joints.
Provides functional operator safety (SIL3/PLe compliance) without requiring the complete removal of main line power, streamlining machine recovery times after a safety zone intrusion.
Operating on a robust 400 VAC 3-phase supply and supporting 23-bit absolute encoders, this 1.5 kW servo drive delivers the sub-micron accuracy and dynamic stiffness required for precise metal cutting and milling.
Eliminates machining surface defects caused by transient vibrations and tracking overshoot through ultra-high resolution encoder feedback.
