Name: Omron MY2IN-GS-R DC24 General Purpose Relay - INOSAKI
SKU: Omron-MY2IN-GS-R DC24
Price: 10.45 USD
Availability: InStock

Technical Overview

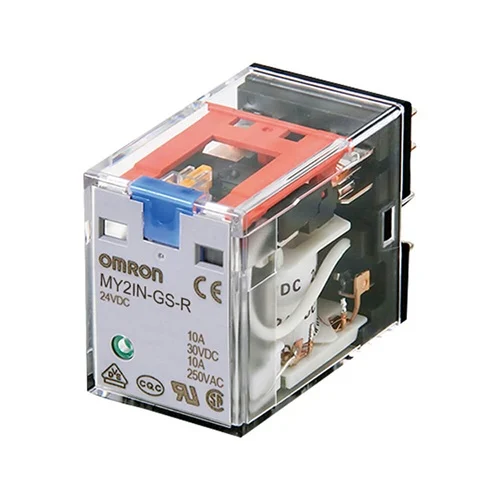

The Omron MY2IN-GS-R DC24 is a miniature power relay designed for a wide range of sequence control and power switching applications. It features a DPDT contact configuration and is rated for a 10A carry current. This plug-in relay operates on a 24VDC coil and includes a mechanical indicator, a high-visibility LED indicator, and a lockable test button for simplified circuit checking and maintenance. It is engineered for reliability with silver contacts and is part of the long-standing MY series, known for its versatility. The design is compatible with various sockets, including Omron's PYF-PU Push-In Plus series for reduced wiring time.

Key Features

Equipped with both a mechanical indicator and a high-intensity LED for clear operational status.
Features a lockable test button for simplified circuit checking.
Reduces wiring work by up to 60% when combined with PYF-PU Push-In Plus Sockets.
DPDT (Double Pole Double Throw) contact configuration.
24VDC rated coil voltage.
Silver (Ag) contact material for reliable switching.
Plug-in/solder terminal type for flexible mounting options.
Cadmium-free contacts for environmental consideration.

Technical Specification Matrix

Parameter	Value
Coil Voltage	24 VDC
Contact Configuration	DPDT
Rated Carry Current	10 A
Contact Voltage Rating (AC)	250 VAC
Contact Voltage Rating (DC)	30 VDC
Contact Material	Silver (Ag)
Coil Resistance	662 Ω
Mounting Type	Socketable
Terminal Type	Plug-in
Operating Temperature	-55°C to 70°C
Max Switching Capacity (Resistive)	2500 VA / 300 W

Industrial Applications

1. Industrial Conveyor Motor Control

Utilized within a control panel to switch a motor starter for a conveyor belt system. The 24VDC coil is energized by a PLC output, and the DPDT contacts simultaneously activate the 3-phase motor contactor coil and provide a feedback signal to an indicator light on the operator's panel.

Problem Solved

Provides reliable, low-power switching of a higher-power motor circuit from a standard PLC output. The DPDT contacts eliminate the need for an additional auxiliary contact, simplifying the wiring and saving panel space.

PLC Output SwitchingMotor ContactorDPDT24VDC ControlConveyor System

2. Machine Guarding Safety Interlock

Acts as a critical component in a machine safety circuit. A safety door position switch signals the relay's 24VDC coil. One set of contacts completes the power circuit to the machine's primary controller, while the second set sends a status signal back to the safety monitoring system. The lockable test button allows for safe commissioning and fault-finding procedures by maintenance personnel.

Problem Solved

Offers a mechanically simple and reliable method to isolate machine power based on a safety input. The dual contacts provide the necessary redundancy for a feedback monitoring loop in a safety-rated circuit.

Safety InterlockMachine GuardingDPDT Feedback24VDC CoilSafety Relay Circuit

3. Automated Pumping Station Control

In an automated water pumping station, this relay controls the activation of a pump based on a level sensor. The 24VDC coil is ideal for low-voltage sensor signaling. The relay's 10A contacts are robust enough to directly switch the single-phase pump motor or the coil of a larger contactor for a three-phase pump, ensuring efficient water level management.

Problem Solved

Provides a reliable interface between a low-power level sensor and a high-power pump motor. Its high electrical endurance ensures long operational life in applications with frequent switching cycles, reducing maintenance needs.

Level Sensor InterfacePump ControlContactor Coil10A SwitchingAutomated Pumping
