3A 240VAC solid state relay. 5-24VDC input, 8-pin plug-in design, and zero-cross switching. Compact MY-style SSR for reliable, spark-free AC load control in automated machinery.

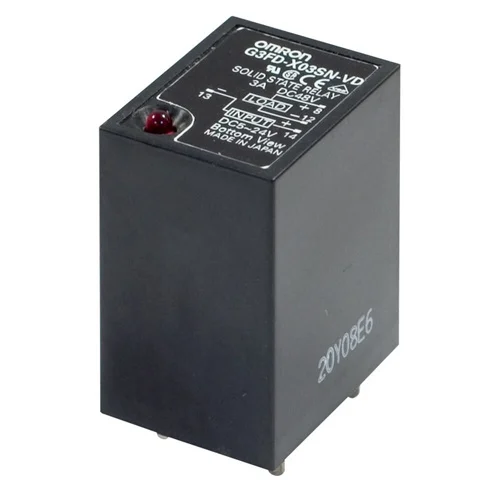

The Omron G3F-203SN-VD DC5-24 is a plug-in solid-state relay (SSR) designed for seamless integration into industrial automation systems. It shares the same compact profile as the standard MY series power relays, allowing for high-density mounting on DIN rails via 8-pin sockets. This relay features a broad 5 to 24 VDC input control voltage and switches output loads up to 3A at 100 to 240 VAC. Advanced features include photocoupler isolation for superior signal separation, a zero-cross function to minimize electrical noise and inrush current, and an integrated LED indicator for quick status verification.
| Parameter | Value |
|---|---|
| Input Control Voltage (Rated) | 5 to 24 VDC |
| Input Voltage (Operating Range) | 4 to 28 VDC |
| Output Load Voltage | 100 to 240 VAC |
| Output Load Current | 0.1 A to 3 A |
| Must Operate Voltage | 4 VDC max. |
| Must Release Voltage | 1 VDC min. |
| Input Impedance | 15 mA max. (Constant-current) |
| Output ON Voltage Drop | 1.6 V (RMS) max. |
| Leakage Current | 5 mA max. |
| Operating Temperature | -30°C to +80°C |
| Isolation Type | Photocoupler |
| Termination Style | 8-Pin Plug-in |
Utilized to switch AC power to heating elements in plastic film wrapping and sealing machinery. The zero-cross function minimizes electrical noise during the frequent, high-cycle switching required for precise temperature control.
Eliminates contact wear and reduces electrical noise commonly associated with mechanical relays in high-frequency heating applications.
Functions as an interface relay between a 24VDC Programmable Logic Controller (PLC) output and a 240 VAC small motor or actuator. Its compact, MY-series profile allows for high-density DIN rail mounting in tight control panels.
Safely isolates and steps up low-voltage DC logic signals to high-voltage AC loads, protecting sensitive PLC outputs.
Controls 120/240 VAC industrial lighting arrays triggered by automated systems or sensors. The solid-state switching inherently avoids contact welding, while the zero-cross feature mitigates the massive inrush currents from LED drivers.
Prevents relay failure caused by high inrush currents that weld electromechanical relay contacts in lighting circuits.
