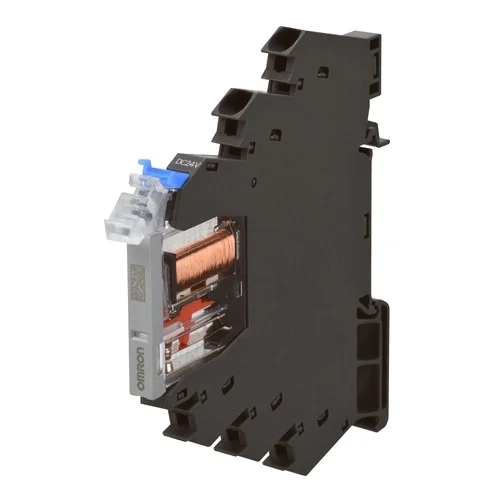

Name: Omron G2RV-ST500 DC24 Slim I/O Electromechanical Relay - INOSAKI
SKU: Omron-G2RV-ST500 DC24
Price: 21.16 USD
Availability: InStock

Technical Overview

The Omron G2RV-ST500 DC24 is a premium, ultra-slim 6.2mm electromechanical interface relay engineered for high-density industrial control panels. Operating on a 24VDC, 13.5mA coil, this SPDT (1 Form C) relay reliably manages load currents up to 6A and switching voltages up to 440VAC. The integrated Push-In Plus terminal technology drastically reduces wiring time and guarantees robust, vibration-resistant connections. Encased in a transparent housing, the relay features both LED and mechanical indicators for immediate visual status verification. Its compact footprint, combined with a secure DIN rail locking lever, makes it an ideal choice for PLC output isolation, automated material handling, and rigorous industrial automation architectures.

Key Features

Ultra-slim 6.2mm width maximizes available DIN rail space in control cabinets.
Push-In Plus terminal blocks significantly reduce wiring time and prevent loosening from vibrations.
SPDT (1 Form C) contact configuration capable of handling 6A load currents.
Transparent housing equipped with both LED and mechanical status indicators.
Robust locking lever arm ensures secure relay retention and simplifies maintenance.
Wide operating temperature range from -40°C to +55°C for diverse industrial environments.
High switching capacity handling up to 440VAC maximum.

Technical Specification Matrix

Parameter	Value
Coil Voltage	24 VDC
Coil Current	13.5 mA
Contact Form	SPDT (1 Form C)
Rated Load Current	6 A
Max Switching Voltage (AC)	440 VAC
Contact Material	Silver (Ag) Alloy
Terminal Type	Push-In Plus
Mounting Method	DIN Rail
Operating Temperature	-40°C to +55°C
Dimensions (W x H x L)	6.2 mm x 90 mm x 88 mm

Industrial Applications

1. High-Density PLC Output Isolation

In modern control cabinets where DIN rail real estate is highly restricted, this slim relay acts as an interposing layer between sensitive 24VDC PLC outputs and heavier industrial loads such as contactors, small motors, or solenoids.

Problem Solved

Protects delicate, expensive PLC output cards from inductive voltage spikes and overcurrent damage while maximizing panel density with its 6.2mm width.

PLC interposing relayHigh-density panelInductive load isolation6.2mm slimline

2. Automated Conveyor System Control

Deployed in material handling equipment to switch control logic for diverting arms, pneumatic solenoid valves, and auxiliary motors. The specialized Push-In Plus terminals are specifically designed to remain secure under constant structural vibration.

Problem Solved

Eliminates the risk of loose control wires caused by continuous machinery vibration, drastically reducing maintenance downtime in 24/7 warehouse operations.

Vibration resistancePush-In Plus terminalsSPDT switchingAutomated material handling

3. Industrial HVAC and Pump Staging Panels

Integrated into main environmental control boards to sequence and stage industrial fans, compressors, and water pumps. The wide thermal tolerance ensures flawless operation in unconditioned pump houses or outdoor control kiosks.

Problem Solved

Ensures reliable, continuous load switching for critical environmental control equipment even when exposed to extreme ambient temperature fluctuations.

Wide operating temperatureEnvironmental controlLoad staging6A contact rating
