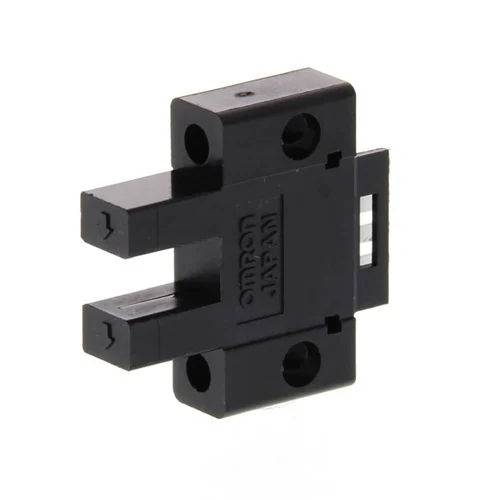

Omron EE-SX670R: PNP slot-type through-beam photomicrosensor; 1 kHz min. (3 kHz average); IP50.
The Omron EE-SX670R is a PNP slot-type through-beam photomicrosensor in a standard form. It has a 5 mm slot, detects opaque objects from 2 × 0.8 mm and uses 940 nm infrared light. Its 5–24 VDC supply, selectable Light-ON/Dark-ON output and IP50 protection suit compact part-detection tasks; supply status is recorded as Unknown.
A PNP slot-type through-beam photomicrosensor with a rated sensing range of 5 mm slot width.
| Parameter | Value |
|---|---|
| Sensing method | Through-beam slot type; standard form |
| Sensing distance | 5 mm slot width |
| Minimum sensing object | Opaque object, 2 × 0.8 mm minimum |
| Differential distance | 0.025 mm |
| Light source | Infrared LED, 940 nm |
| Indicator behavior | Red indicator; standard P suffix indicates incident-light state, R suffix indicates interrupted-light state |
| Power supply | 5–24 VDC ±10%; 10% p-p ripple maximum |
| Current consumption | 12 mA max. |
| Output | PNP open collector; 5–24 VDC load; 50 mA max.; Selectable Light-ON/Dark-ON |
| Residual voltage | 1.3 V max. at 50 mA; OFF leakage 0.5 mA max. |
| Protection circuit | Load short-circuit protection |
| Response frequency | 1 kHz min. (3 kHz average) |
| Ambient illumination | 1,000 lx max. fluorescent light on receiver |
| Ambient temperature | Operating −25 to +55 °C; storage −30 to +80 °C; no icing or condensation |
| Ambient humidity | Operating 5–85% RH; storage 5–95% RH |
| Enclosure rating | IP50 |
| Housing material | PBT case; polycarbonate cover |
| Connection | 4-pin connector; direct soldering possible; cable sold separately |
| Physical Weight (kg) | Approx. 0.0031 kg |
| Dimensions L x W x H (cm) | See Omron dimension drawing; dimensions not transcribed numerically |
| Supply status | Unknown; current manufacturer supply state not established |
Engineering suggestions require suitability checks for your installation.
A feeder or compact assembly station may need to detect an opaque tab or part crossing a fixed optical slot.
Mount the sensor around the passing target and confirm the 2 × 0.8 mm minimum opaque object and selected Light-ON/Dark-ON logic.
A slot sensor may provide a discrete signal as a flag or vane passes through the optical path.
Align the vane in the slot and connect the PNP output to a compatible input; validate switching frequency and the required connector cable separately.
