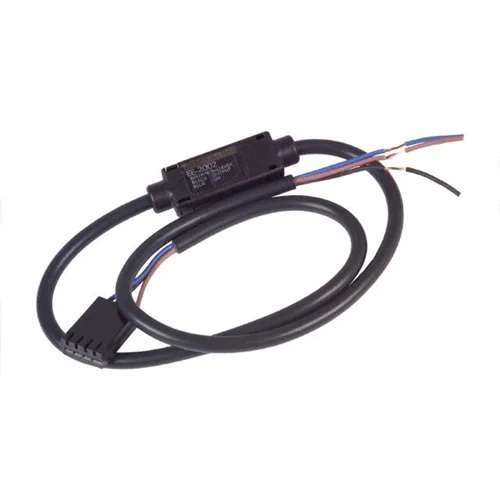

Omron EE-2002 is a 0.46 m NPN/PNP conversion connector for compatible photomicro sensors, with a three-conductor cable.
The Omron EE-2002 is an NPN/PNP conversion connector accessory for listed Omron photomicro sensors. It has a 0.46 m total cable length and a three-conductor vinyl-insulated cable; the output-end terminals are brown (+), black (OUT) and blue (−). Omron notes that the EE-SX67[] and EE-SY67[] sensor families do not support Light-ON mode with this accessory. Omron's exact-model page lists EE-2002 as selling and a standard-stock model, with its status updated 2026-10-05; the displayed stock field is not a quantity.
A 0.46 m conversion connector accessory for compatible Omron photomicro sensors.
| Parameter | Value |
|---|---|
| Product type | NPN/PNP conversion connector for photomicro sensors |
| Total cable length | 0.46 m |
| Cable construction | 4 mm diameter, 3-conductor vinyl-insulated round cable |
| Conductor cross-section | 0.2 mm² |
| Insulation diameter | 1.2 mm |
| Output-end terminal arrangement | 1: brown (+); 2: black (OUT); 3: blue (−) |
| Applicable photomicro sensors | EE-SX67[]/[]A (connector models only), EE-SX47[], EE-SY67[], EE-SPY31[]/41[], EE-SPX303N/403N |
| Operating-mode note | EE-SX67[] and EE-SY67[] do not support Light-ON mode with EE-2002 |
| Connector-side body dimensions | Omron's drawing shows 16.2, 11.8 and 5.3 mm; consult the drawing for dimension orientation. Overall length is listed separately as 0.46 m. |
| Physical Weight (kg) | Not stated in the manufacturer data checked |
| Dimensions L x W x H (cm) | See Omron's dimensional drawing; dimensions are shown for the connector body and cable layout rather than as one consolidated L × W × H value. |
| Supply status | Active; Omron lists the exact model as selling and standard-stock, updated 2026-10-05. The displayed inventory field is not a live stock quantity. |
Engineering suggestions require suitability checks for your installation.
A photomicro sensor assembly may require the manufacturer-listed conversion accessory and a separate lead to the control input.
Use EE-2002 with an Omron photomicro sensor from its compatibility list, then connect the brown +, black OUT and blue − conductors according to the sensor and receiving circuit documentation.
A machine retrofit may need an accessory matched to the installed sensor family and connector version.
Confirm the exact sensor model is listed for EE-2002 and observe Omron's Light-ON limitation for EE-SX67[] and EE-SY67[] models.
